Global_Remote_Diverter_Valve

Hydraulically operated diverters (RDV)

Areas of application

basin faucet

kitchen faucet

side spray

shower faucet

Global website
Manufacturers
Products
Diverters
Hydraulically operated diverters
The RDV diverter valve is a hydraulically driven diverter. For example, it can be used to direct the water stream from a kitchen faucet to a side spray.
Product finderContact

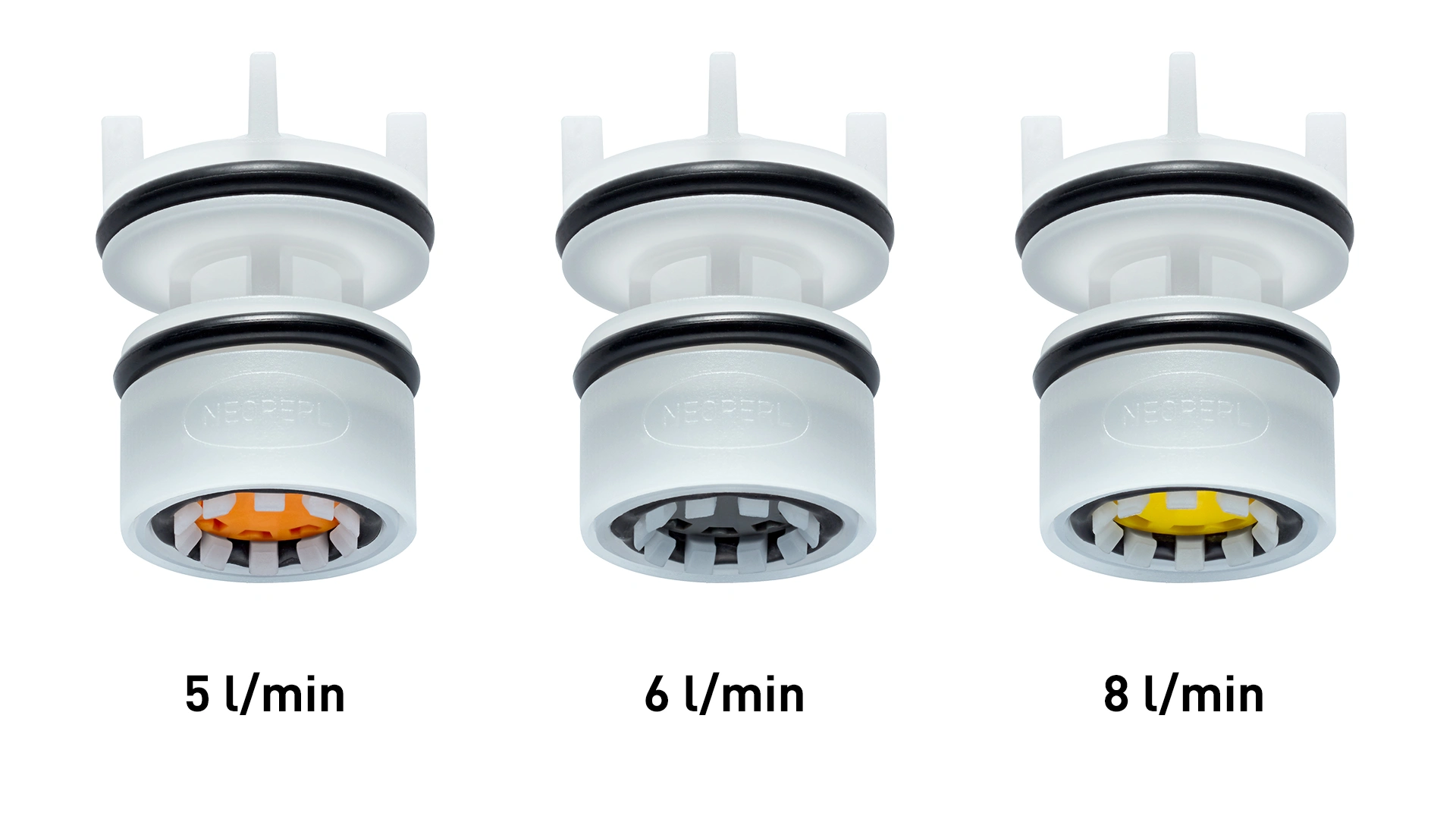

Global_Remote_Diverter_Valve_FlowRegulation
The flow rate is color-coded (NEOPERL Watercolours principle)

Quality features

  • The small valve is installed out of sight and is operated by activating the secondary outlet, such as by pressing a button on the side spray.
  • The MR03 › flow regulator integrated in the RDV keeps the flow rate constant, whatever the line pressure.
  • It is essential to consider the design-related resistance of your secondary application in order to choose the right RDV flow rate. Thirteen different models allow for the ideal adjustment of the switching function, without unwanted dripping.

Standard position and possible secondary outlets

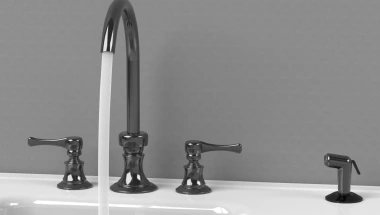

Standard position

Standard position

Typical standard position: water flows out from the faucet
Side spray

Side spray

Typical secondary outlet: side spray, kitchen sink
Water filter

Water filter

Water filter as a secondary outlet

Installation options

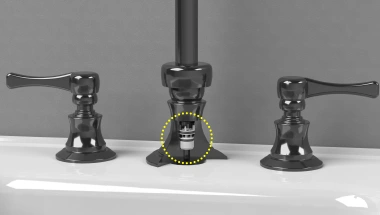

Directly in the faucet body

Directly in the faucet body

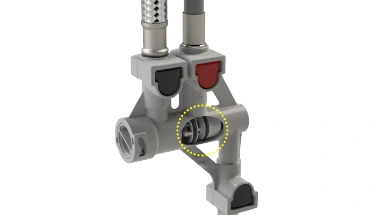

As part of the three-way quick connector

As part of the three-way quick connector

Selection criteria

Please note that RDV diverters are only available for our OEM/manufacturing customers. For information on worldwide approvals and the available flow rates, please see the product listing.
With the various different flow rates that are available, the ideal (drip-free) switching function can be achieved for each application. The RDV is the same shape and size for all flow rate categories.
Do you need help choosing and/or samples for testing? You will find the relevant contact information at the bottom of the page.
Product range forOEM/Industry

Get advice now

Please contact us for help finding the right RDV diverter valve. Our qualified staff will be happy to assist you with any questions you may have.
