Air gap fittings (injector)

Areas of application

sanitary/plumbing applications

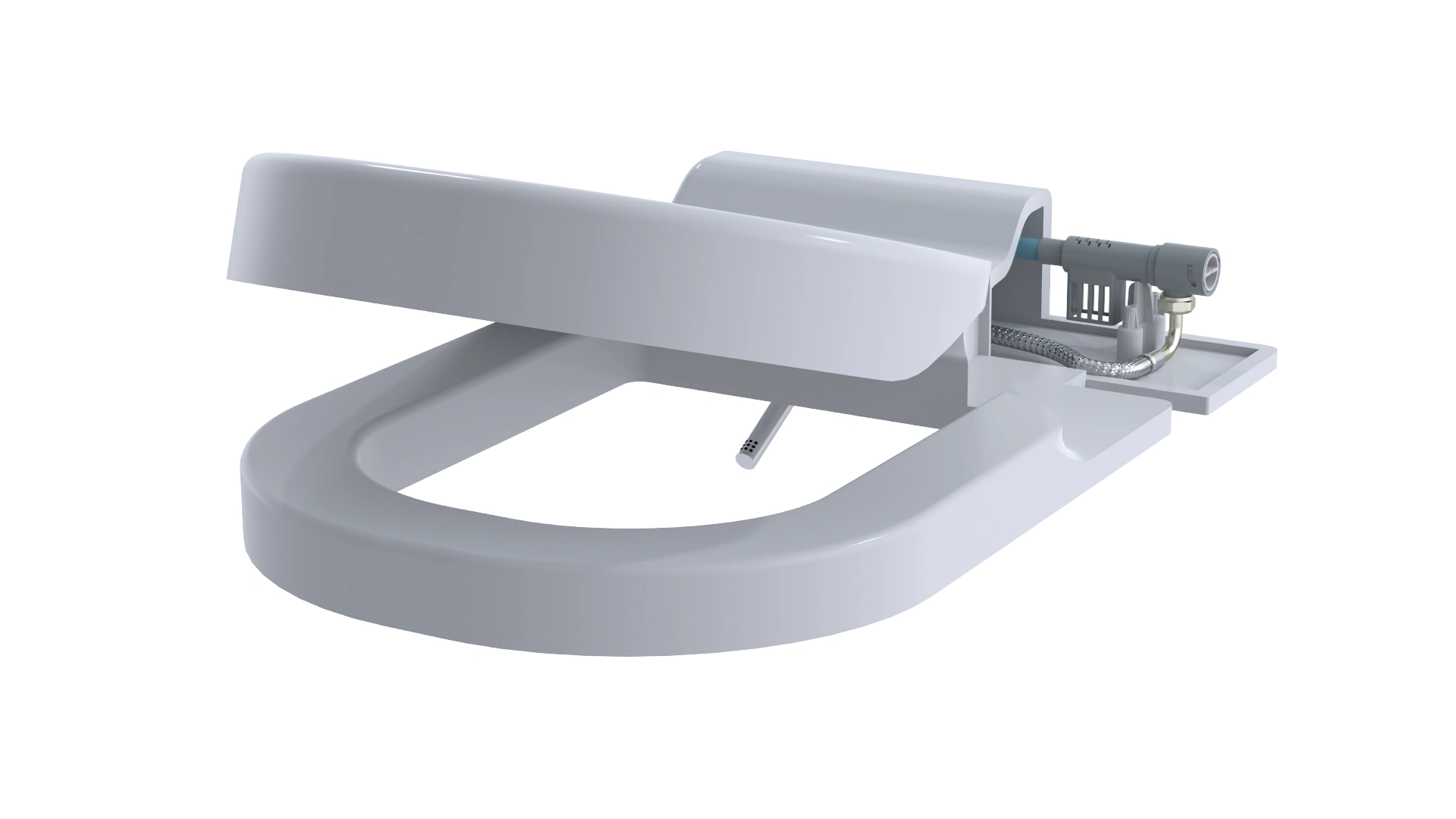

shower toilet

technical applications

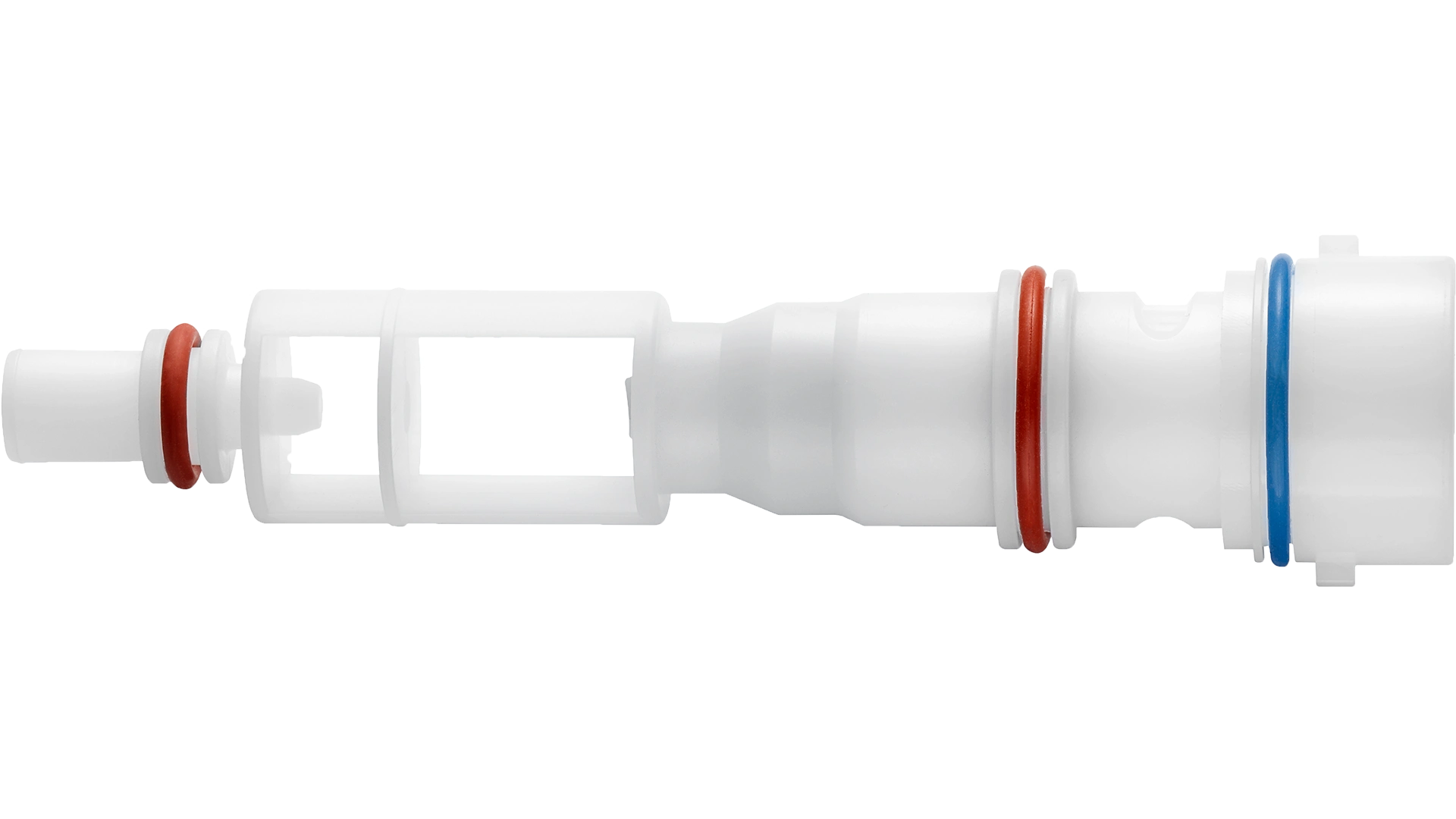

Injector AD backflow preventer protect potable water from pollution by bacteria, microbes and viruses. All three models meet the strict criteria of DIN EN 1717 category 5. In contrast to other category 5 protection methods, all Injector AD models do not require electricity, a pump or water tank.

DIN EN 1717 specifies requirements for the protection against pollution of potable water in water installations and for protection devices to prevent potable water pollution by backflow. Category 5 applies to all fluids that may pose a human health hazard due to microbial or viral pathogens and do require protection by air gaps.

Quality features

Its sophisticated nozzle technology (see "How does the protection device work?") enables Injector ADs to bridge an air gap with a precisely defined water jet, which corresponds to a type AD protection device according to DIN EN 1717.

Here you can see the benefits of the Injector AD compared to other category 5 protection devices at a glance:

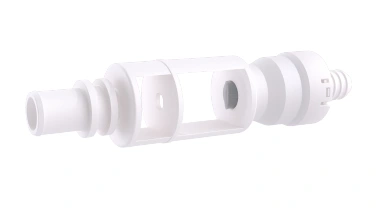

Design: very low space requirements due to compact design
Efficiency: no power supply, water tank and pump is required
Flow rate: 1 l/min or 2 l/min
Anti-lime protection: models with a flexible nozzle for enhanced lime protection are available

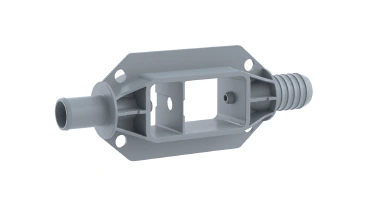

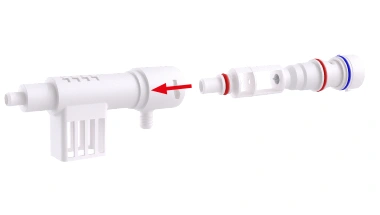

Mounting support: the Injector AD 2 l/min is available with housing (either with hose nipple or 3/8" thread)

In addition to DIN EN 1717, these Injector AD models are also cUPC (IAPMO) certified acc. to ASME A112.1.3 Air gap fittings to match backflow protection of shower toilets (ASME A112.4.2)

How does the protection device work?

The Injector AD has an air gap built into it, which is bridged on the inlet side with the aid of a precise water jet. The sophisticated nozzle technology is used here in the smallest of spaces. A backflow of potentially polluted water is not possible: the gap is an insurmountable hurdle for the processed water.
