You quickly turn on the tap and it happens – water gushes out, splashing in all directions as it hits the sink or washbasin. The SMOOTH OPEN faucet aerator puts an end to this. Ideal for faucets with a large drop height between the spout and basin, such as kitchen faucets, and for touchless faucets.

Spritzfreier Strahl beim Smooth Open
Splash-free water impact even from a height with the SMOOTH OPEN faucet aerator (left), conventional faucet aerator (right)
Quality features

Splash-free thanks to slow-start technology

A damper integrated into the aerator increases the flow rate so gently that the water stream falls "softly" onto the surface and is virtually splash-free even when coming from a great height.

Glasses, cups, and pots can be conveniently filled without splashing.

name="media" Watch the video to see the difference
SMOOTH OPEN aerator with slow start technology
Models
Smooth Open

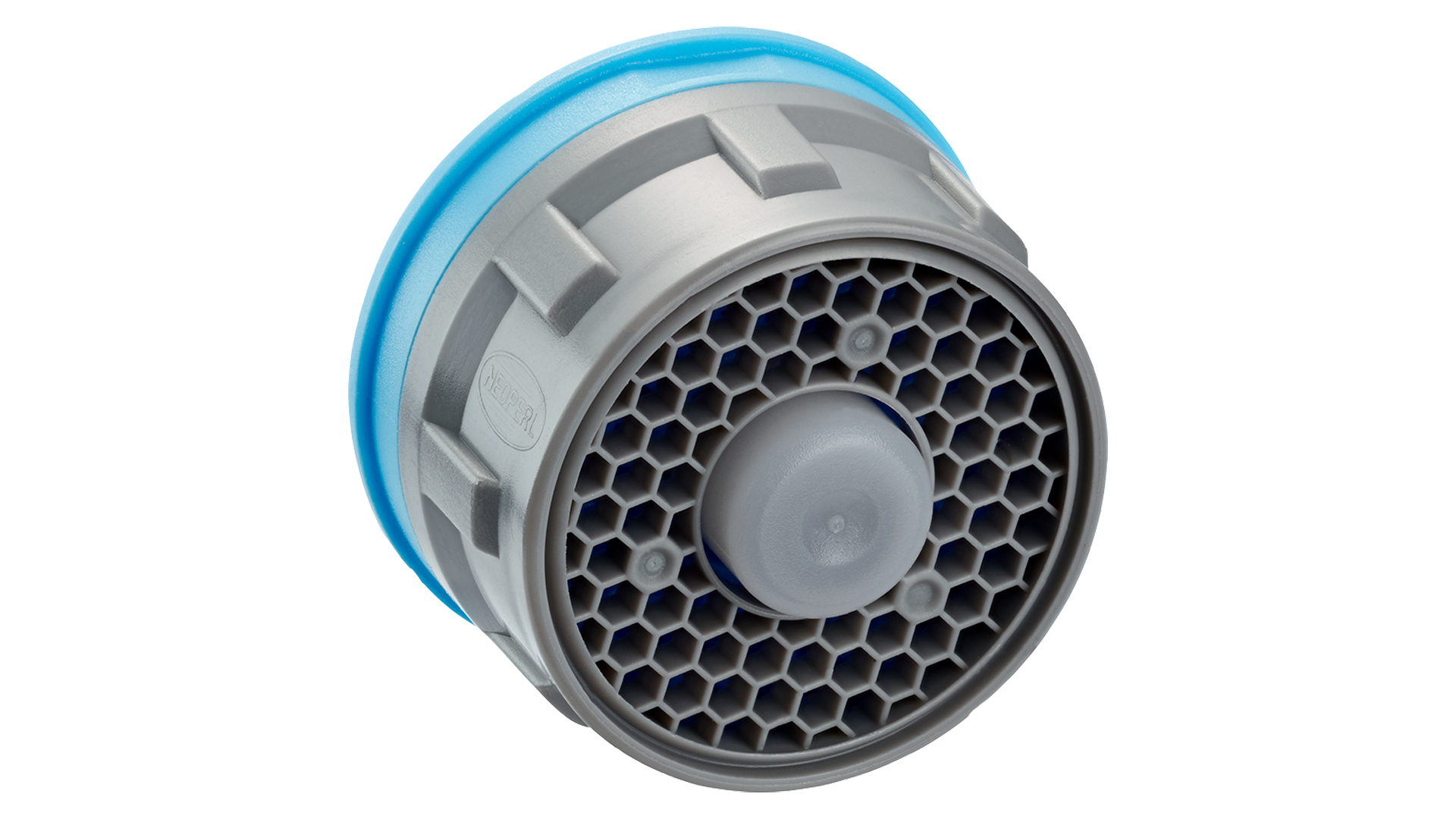

SMOOTH OPEN Aerator

Ideal for kitchen faucets with a large drop height between the spout and basin. Also suitable for touchless faucets that have the water stream start off with full force the moment the sensor is activated.

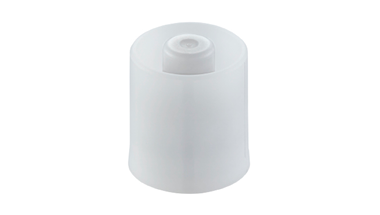

SMOOTH OPEN Cartridge

For hand showers, pull-out sprays, side sprays or faucets fitted with non-standard size aerators. Available with or without a chrome-plated connector.

Selection criteria

Please note that not all SMOOTH OPEN models are available in every country and for all customer areas. For more details, as well as information on worldwide approvals, please see the product listing. To refine your selection, please use the following points as filters.

Flow rate: 16 l/min for aerator models and 19l/min for cartridge models.Size: The SMOOTH OPEN aerator is available in STD for housings of size M22/M24. (US thread housings are available on request.)Stream pattern: The aerator is available with either an aerated comfort stream or a crystal clear laminar stream.Pressure range: Suitable for the standard pressure range, which is between 1 and 10 bar.Restrictions: Not suitable for non-pressurized water heaters.

Do you need help choosing? You will find the relevant contact information at the bottom of the page.

name="media"
Product range for OEM/Industry
Product range for Retail/Distribution
Reset all

9 Results

All downloads and properties
Smooth Open
  • Part No. : 020439000
  • insert only
  • Size: STD/REG insert
  • Flow rate: 16.0 l/min at 3 bar
  • Stream type: Laminar
Downloads and properties
Technical Product Information Download certificate Download drawing ›  Download Specsheet
Smooth Open
  • Part No. : 020445000
  • insert only
  • Size: STD/REG insert
  • Flow rate: 16.0 l/min at 3 bar
  • Stream type: Aerated
Downloads and properties
Technical Product Information Download drawing ›  Download Specsheet
Smooth Open
  • Part No. : 010435000
  • insert with housing
  • Size: female M22x1
  • Flow rate: 16.0 l/min at 3 bar
  • Stream type: Aerated
Downloads and properties
Technical Product Information Download drawing ›  Download Specsheet
Smooth Open
  • Part No. : 010445000
  • insert with housing
  • Size: male M24x1
  • Flow rate: 16.0 l/min at 3 bar
  • Stream type: Aerated
Downloads and properties
Technical Product Information Download drawing ›  Download Specsheet
Smooth Open
  • Part No. : 010449000
  • insert with housing
  • Size: male M24x1
  • Flow rate: 16.0 l/min at 3 bar
  • Stream type: Laminar
Downloads and properties
Technical Product Information Download certificate Download drawing ›  Download Specsheet
Smooth Open
  • Part No. : 010439000
  • insert with housing
  • Size: female M22x1
  • Flow rate: 16.0 l/min at 3 bar
  • Stream type: Laminar
Downloads and properties
Technical Product Information Download certificate Download drawing ›  Download Specsheet
Smooth Open cartridge 15 mm
  • Part No. : 188700000
  • Flow rate: 19.0 l/min at 3 bar
Downloads and properties
Technical Product Information Download certificate Download drawing ›  Download Specsheet
Smooth Open cartridge 15 mm
  • Part No. : 188701000
  • Flow rate: 19.0 l/min at 3 bar
Downloads and properties
Technical Product Information Download certificate Download drawing ›  Download Specsheet
Smooth Open cartridge 15 mm
  • Part No. : 188702000
  • Flow rate: 19.0 l/min at 3 bar
Downloads and properties
Technical Product Information Download certificate Download drawing ›  Download Specsheet
Show all
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Datasheets

All relevant technical data on NEOPERL Smooth Open aerators is available for download here.

Datasheet NEOPERL Smooth Open Aerator STD  | pdf | 869.84KB
NEOPERL Housing Overview Standard (STD) Size  | pdf | 689.23KB
Datasheet NEOPERL Smooth Open Cartridge  | pdf | 862.03KB
