Variation of Aerators
Faucet aerators – small parts, large effect
Scroll to explore
HomeProductsFaucet aerators

They are integrated into the spouts of washbasin, kitchen and bathtub faucets and seem fairly unremarkable at first glance. Yet faucet aerators are important components that we use on a daily basis.

Functions of faucet aeratorsUser comfort: aerators produce a gentle, splash-free water flow and shape the water stream to give it different patterns.Conserving resources: numerous models help save water and energy.Compliance with legal requirements: aerators are indispensable throughout the world for meeting national standards, regulations and legislation.

name="media"
Stream patterns. My Water. My Design.

NEOPERL faucet aerators shape the water stream to give it different patterns. "My Water. My Design." allows you to select stream shapes according to your individual requirements and design preferences. The spectrum ranges from crystal clear to gentle, stylish, or with refreshing beads of water. Our › video gives you a further impression of the various possibilities.

name="media"
Stream pattern: comfort stream
Aerated stream (COMFORT)

The aerator adds air to the water flowing through the faucet. This creates a soft, aerated stream that feels pleasant and plentiful.

Stream pattern: pure stream
Crystal-clear laminar stream (PURE)

A vortex-free flow makes the laminar stream appear crystal clear and natural – for a feeling of extra cleanliness. This is a real trend in Japan and a hygiene factor in hospitals.

Stream pattern: Rain spray
Refreshing rain spray stream (RAIN)

The rain spray offers you a special washing experience: an extensive, abundant and pleasant shower sensation for your hands – as refreshing as warm summer rain.

Stream pattern: Mikado Stream
Elegant MIKADO stream (DESIGN)

The MIKADO stream creates a unique pattern from individual water jets. An eye-catcher when washing your hands – delicate, clear, and harmonious.

Spray stream

The spray stream provides full coverage of the hands with a low flow. Sprays are recommended for use in public lavatories.

Atomizer stream

An atomized stream offers a minimal flow rate (water-saving). The atomization is achieved by dispersing the water into tiny droplets.

Product groups

Neoperl offers you a comprehensive range of aerators in different product groups to meet your needs.

name="media"
Areators for Housing
Aerators with housing

The classic solution with insert, washer and housing. Find out all about the various sizes and designs.

Find out more
Threaded Aerators
Aerators with integrated thread

Discover our aerators with built-in thread for direct attachment to the spout of the faucet.

Find out more
Aerator specialities
Aerators in special designs

These aerators that are specially developed for designer faucets give you the freedom to find creative solutions. Thanks to their various shapes and sizes, they open up a wide range of design options.

Find out more
Imagepicture of dual mode aerators
Dual mode aerators

These clever aerators provide multiple flow rates or stream patterns in one. They allow you to change from a lower to a higher flow rate, or switch between different streams.

Find out more
Use aerators as problem solvers

Many models are available with additional features, for example, to save water, prevent limescale, increase user comfort, or improve the quality of the water stream through self-cleaning.

name="media"
Washing hands at the wash basin
How to save water with our products

With hot water you save twice over: less water also means less energy is used for heating. One of many examples of how NEOPERL products help you conserve valuable resources.

Find out more
Cascade M24 with key
How to remove and replace a faucet aerator

We show you how to replace a faucet aerator. This extends your faucet's lifespan, prevents scaling and ensures that the water stream is always pleasant and splash-free.

Find out more
Helpful features
Aerator Additional feature SLC: Lime scale protection
SLC: limescale protection

Thanks to the soft elastomer surface, you can easily remove limescale deposits on the underside of the aerator. Simply rub them off with your finger.

Find out more in the video

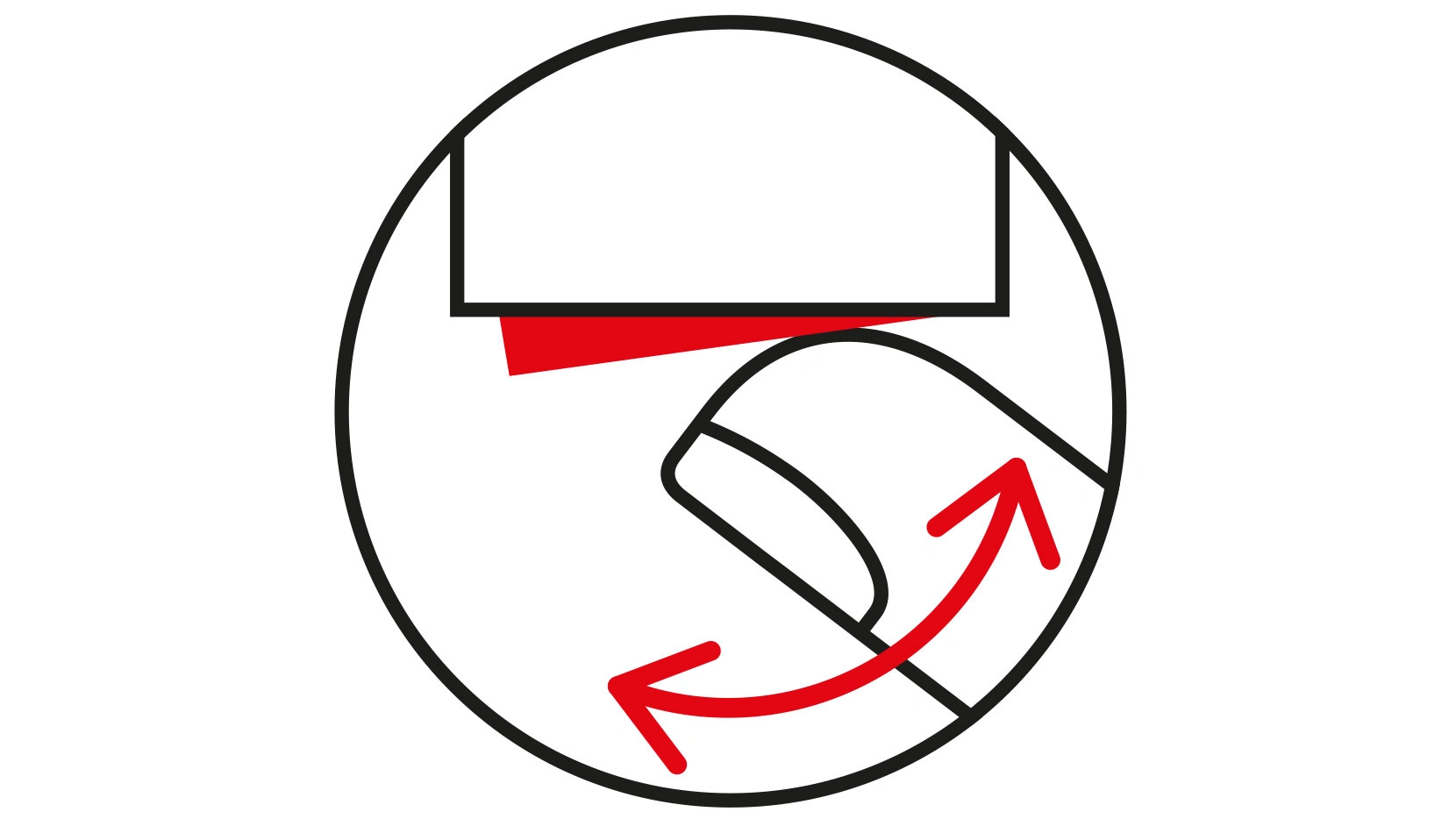

Aerator Additional feature SSR: Adjust jet angle
SSR: adjust the water stream angle

For aerators with SSR function, the angle of the water stream can be adjusted. This saves you having to replace the faucet if the water stream hits the basin at an angle that is less than optimum.

Find out more in the video
Aerator Additional feature AC: Automatic cleaning function
AC: automatic cleaning function

Aerators with AC self-cleaning function automatically flush out particles measuring up to 0.7 mm. Especially in sandy regions, this greatly improves the quality of the water stream.

Find out more in the video
Watercolor concept
What is the flow rate of my aerator?

Aerators are available in many different flow rates. To help you navigate our range of products, we have developed a color coding system. Our watercolours concept makes it easy for you to distinguish between the various models in terms of flow rate and stream pattern. It also facilitates the production process and the procurement of spare parts.

Watercolours Colour Code  | pdf | 117.38KB
name="media"

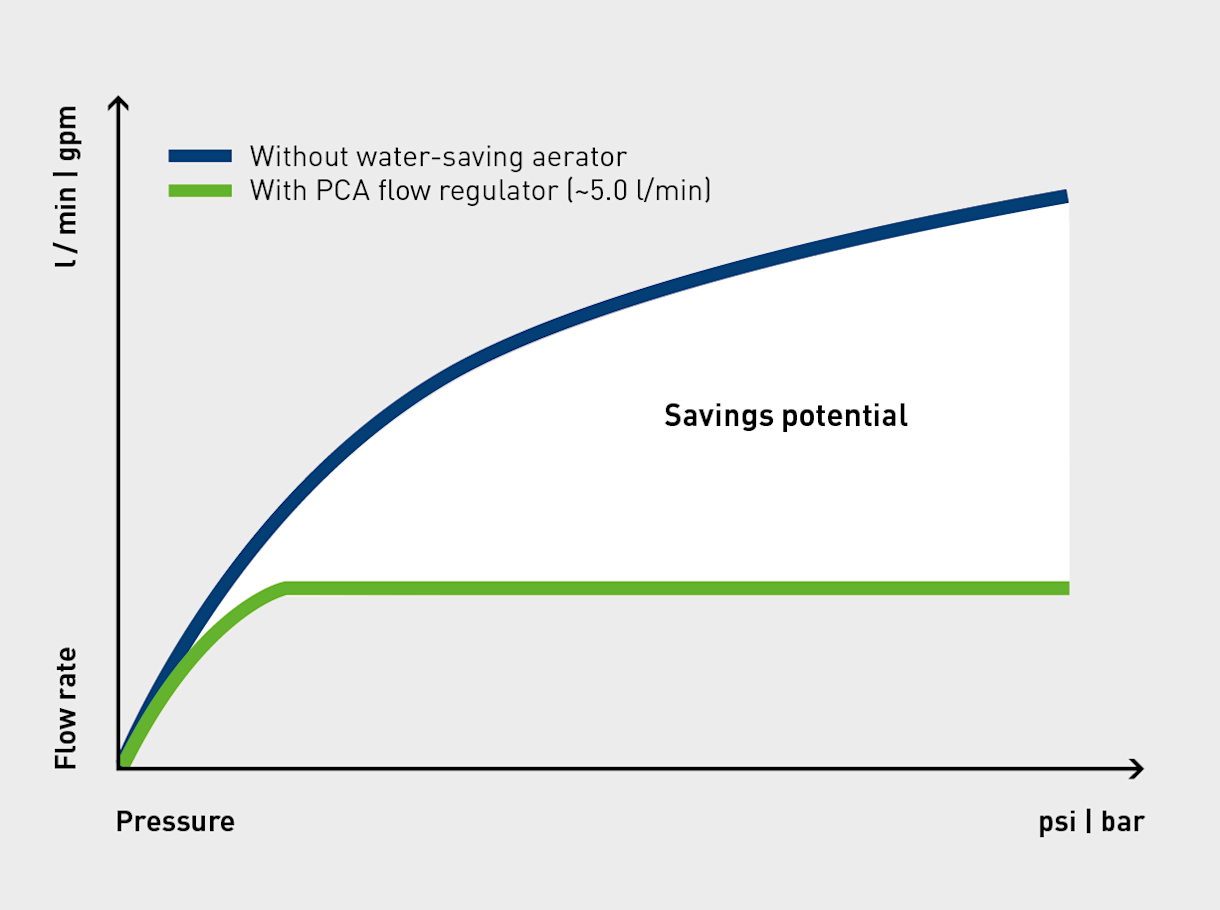

Water-saving potential faucet aerator with integrated PCA flow regulation
Water-saving technologies in faucet aerators

Many NEOPERL aerator models help you save water and energy.

› Discover the technologies that are used to achieve this.

name="media"
Stream shapers for non-pressurized water heaters

If you are using a non-pressurized water heater with low-pressure faucets, you will need a special stream shaper. Conventional aerator models create a pressure drop that is too high for these applications.

Neoperl offers the › NEOSTRAHL and FS Dripless stream shapers, which are specially designed for low-pressure faucets.

name="media"

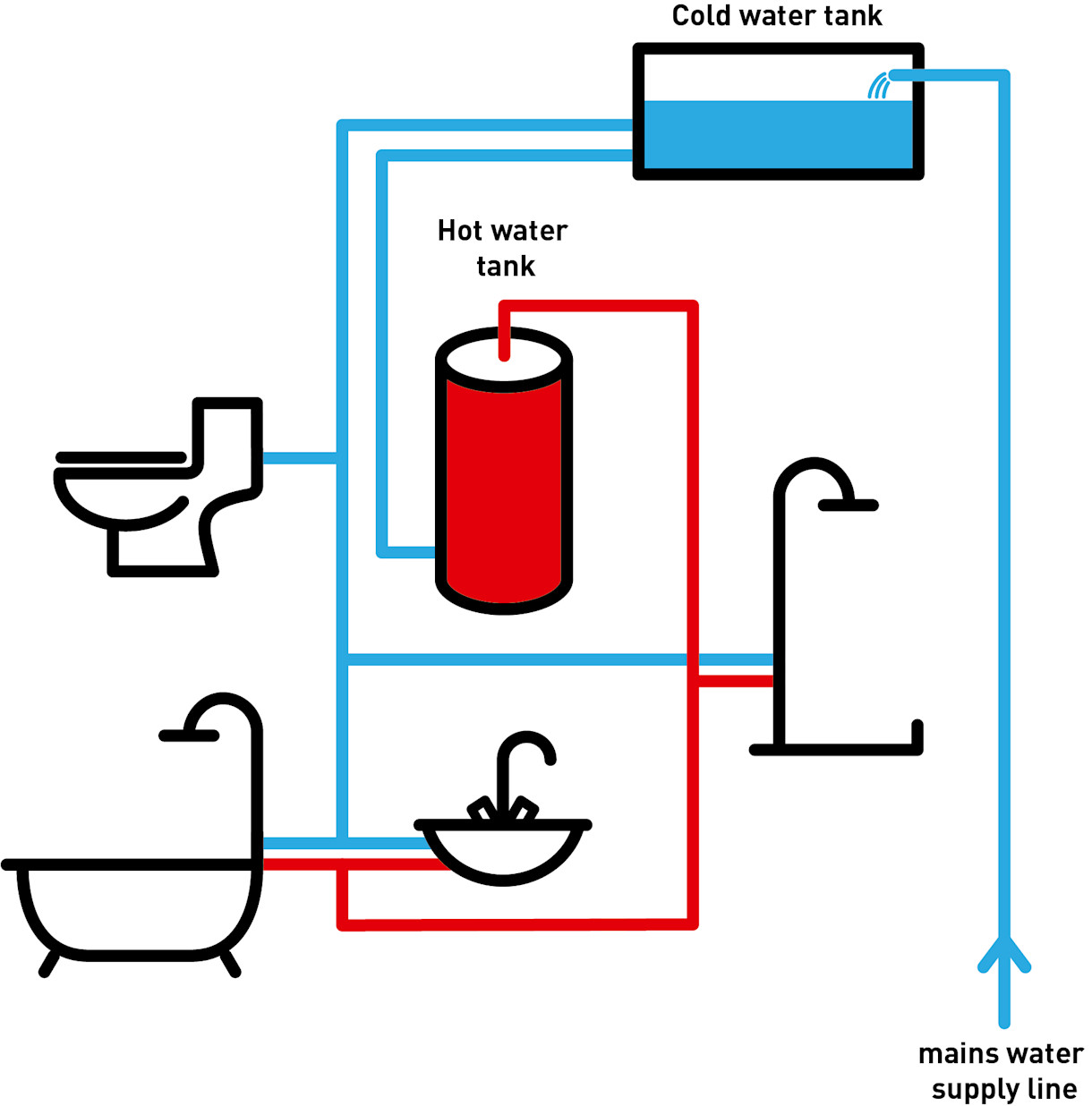

Low supply pressure
Low supply pressure with a water tank on the roof
Low supply pressure

In low-pressure markets with a pressure range between 0.1-1 bar, only the gravity generated in the building is responsible for the water pressure. The height of the water tank above the faucet determines the line pressure at the faucet/draw-off point.

A standard aerator cannot achieve aeration under these circumstances. Neoperl therefore offers special models that produce a comfortable, aerated stream of water even at low supply pressures.

Flow rate VFlow rate QDUAL CORE aerators

Find the right models for your needs with our › Product Finder.

name="media"
Norms and approvals

Drinking water is our most important nutrient. Around the world, numerous mechanical and hygiene standards and approvals therefore apply to aerators and faucets in order to protect human health.

Noise-reduced models

One example are noise-reduced aerator models, designed to meet mechanical standards. They reduce the flow noise that is transmitted through the installation. Think of the hissing noise in the pipes when the neighbor runs a bath.

The noise requirements for faucets in drinking water installations and their components are defined in Europe by standards such as EN 246.

Neoperl offers you a wide range of noise-reduced aerator models. All the necessary tests are carried out in-house, in our own sound laboratory.

name="media"
We can produce solutions tailored to the housing geometry or flow rate. Ask us with pleasure!
Do you need advice on faucet aerators?

We would be pleased to advise you on our products and, if required, develop customized solutions for you. You can reach us via our contact form.
