NEOPERL Pressure Limiters reduce the downstream pressure if it is too high and constantly regulate it at a defined value. In this way, they protect pressure-sensitive applications and components.

Fields of application

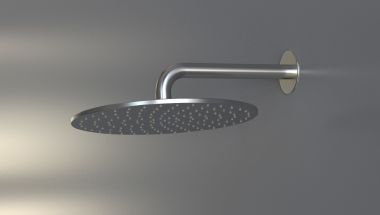

Head shower

with built-in pressure limiter

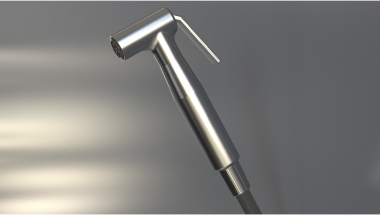

Shattaf

with built-in pressure limiter

Product range for OEM/Industry
Product range for Retail
Reset all

3 Results

All downloads and properties
Pressure regulator 2 bar
  • Part No. : A50013000
  • Operating pressure: 0.5 - 10 bar
  • Design: adapter
  • Connection thread / bore diameter: 1/2"/undefined
Downloads and properties
  • Installation note: 2 bar
  • Max temperature: max. 65 °C
Technical Product Information › Download drawing
Pressure regulator 1 bar
  • Part No. : A50002000
  • Operating pressure: 0.5 - 10 bar
  • Design: adapter
  • Connection thread / bore diameter: 1/2"/undefined
Downloads and properties
  • Installation note: 1 bar
  • Max temperature: max. 65 °C
Technical Product Information › Download drawing
Pressure regulator 1 bar
  • Part No. : A50004000
  • Operating pressure: 0.5 - 10 bar
  • Design: insert
  • Connection thread / bore diameter: 15 mm/undefined
Downloads and properties
  • Installation note: 1 bar
  • Max temperature: max. 65 °C
Technical Product Information › Download drawing
Load more
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
