The PBV pressure balancing valve counteracts temperature fluctuations that can occur due to pressure differences in the cold and hot water supply to the washbasin or shower.
Quality featuresThe PBV pressure balancing valve prevents the water temperature at the washbasin or shower from being affected by, for example, a toilet being flushed or someone having a shower. The line pressure in the cold and hot water supply is brought to the same level; undesirable cross-over flow is prevented. The water can therefore be reliably blended. Unpleasantly cold or dangerously hot water from faucets or showers is reliably prevented even without a built-in thermostat.

name="media"
Application areas and installation
Faucet

Blended water even without a built-in thermostat.

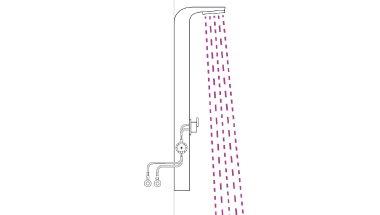

Shower

No unpleasant surprises in the shower.
Hair salon basin

Amounts of hot and cold water according to customer preferences.
Availability and contact

Please note that pressure balancing valves (PBVs) are not sold in every country and are only available for our OEM / manufacturing customers. You can find further information in the product listing below.

Do you need support regarding this product? You will find the relevant contact information at the bottom of the page.

 name="media"
Product range for OEM/Industry
Product range for Retail/Distribution
Icons/crossCreated with Sketch.
Reset all

1 Result

All downloads and properties
Pressure balancing valve
  • Part No. : A50101000
  • Operating pressure: 0.5 - 10 bar
  • Design: connector
  • Connection thread / bore diameter: 3/8" connector/undefined
Downloads and properties
  • Installation note: depending on operating pressure
  • Max temperature: max 65° C
Technical Product Information Download drawing
Show all
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Get advice now

Please contact us for help finding the right pressure regulator. Our qualified staff will be happy to assist you with any questions you may have.
