FSG on/off controls

In kitchens and bathrooms too, the trend is towards simple operation at the push of a button. Neoperl offers faucet manufacturers on/off controls that enable precisely this.

Quality features

Neoperl FSG on/off controls are installed in faucets as a high grade component. They allow for the implementation of an intuitive OPEN/CLOSED operating concept simply at the press of a button.

Convenience: Very smooth activation of the FSG on/off controls, whatever the line pressure.

Efficiency: Our valves function on a purely mechanical and hydraulic basis. Therefore, they require neither a power connection nor batteries for operation.

Long service life: The use of high grade materials and manufacturing processes results in durable, high quality products.

Materials: We use components made of stainless steel and engineering plastics that can withstand high thermal and mechanical loads.

Approvals/certificates: Our FSG on/off controls meet international hygiene standards as well as important mechanical requirements for their use in faucets. Check the article listing below for more details.

Product ID: All of our models are marked with Neoperl's manufacturer code 7880 and a serial number.

name="media"

Solutions

FSG on/off controls are available with different flow rates and flow directions. For detailed product dimensions and installation drawings, please refer to the relevant datasheets available for download below.

name="media"

FSG Standard D6

Diameter: 24 mm

Flow rate: 20 l/min*

Radial upstream flow and axial downstream flow.

* at 3 bar and with open discharge (refer to datasheet)

FSG Standard D8

Diameter: 26 mm

Flow rate: 33 l/min

Radial upstream flow and axial downstream flow.

* at 3 bar and with open discharge (refer to datasheet)

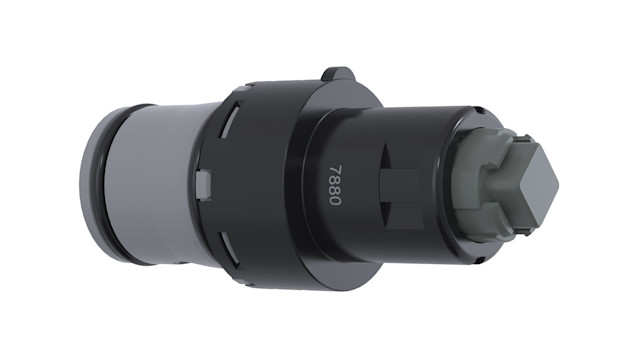

FSG Invers

Diameter: 24 mm

Flow rate: 20 l/min*

Inverse flow: upstream axial & downstream radial. Allows for further options depending on installation requirements.

* at 3 bar and with open discharge (refer to datasheet)

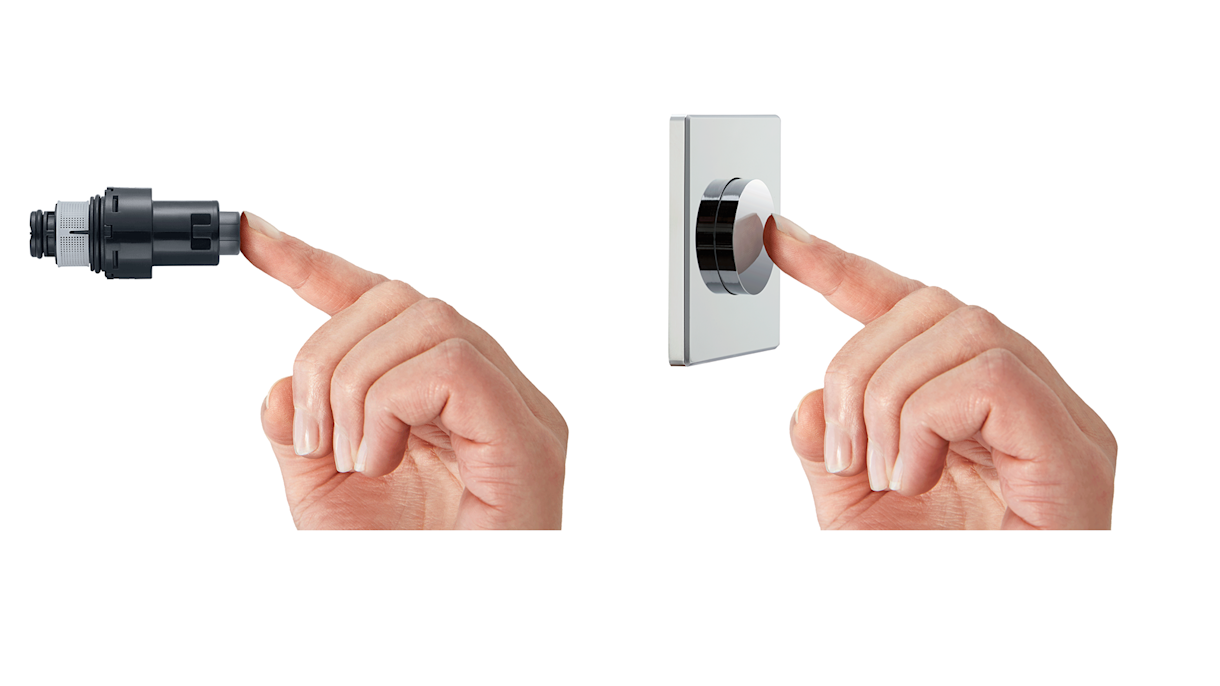

The function of a on-off valve, where you can choose between different outlets by simply pressing a button. — Switch from the on to off position at the press of a button

Function and installation

FSG on/off controls allow the water supply to be switched on and off at the press of a button. Multiple FSG controls can be used to enable parallel utilization of faucet functions, such as simultaneous operation of a shower head and bath spout.

name="media"

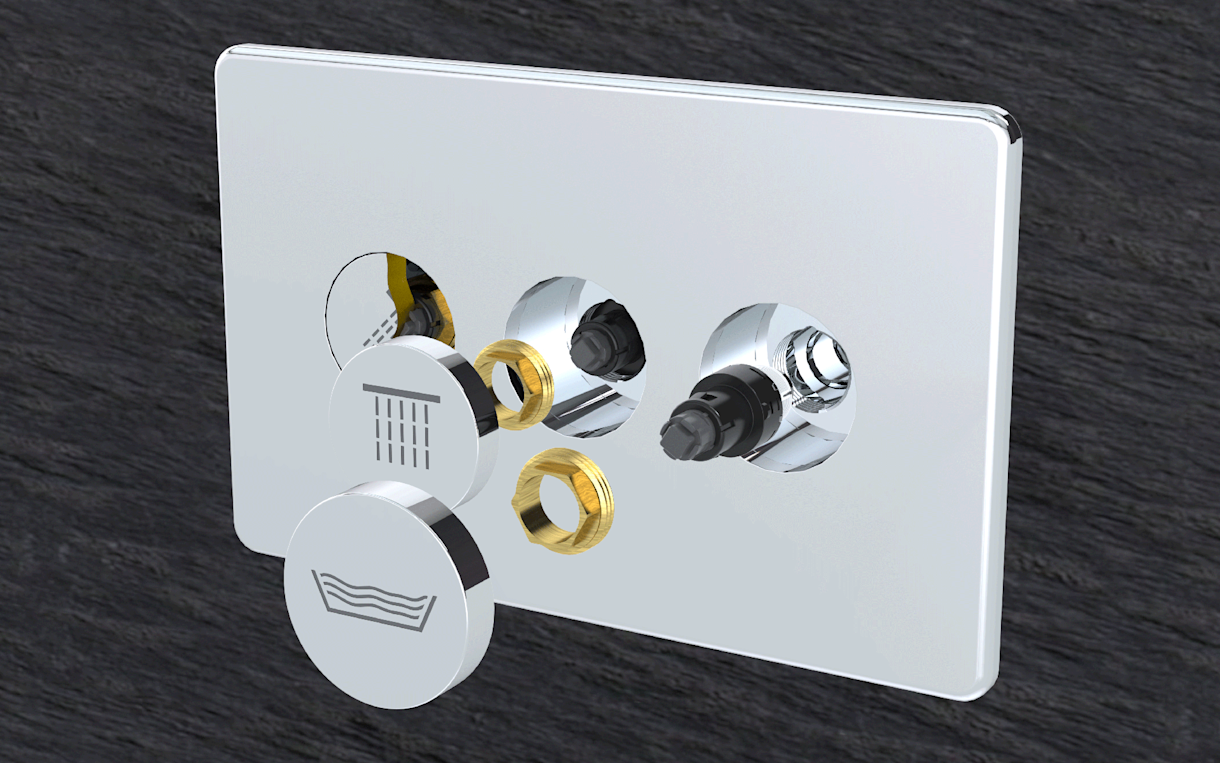

Example flush-mounted installation of FSG on/off controls

FSG controls are installed in the faucet, directly behind the operating buttons.

name="media"

Selection criteria

Please note that FSG on/off controls are only available for our OEM/manufacturing customers. For more details, as well as information on worldwide approvals, please see the product listing. To refine your selection, please use the following points as filters.

Application areas: FSG on/off controls can be used for a multitude of drinking water applications; typical areas include faucets in bathrooms, showers, and kitchens. They can be flush or surface mounted. FSG valves are not suitable for non-pressurized water heaters.

Flow rate: With regard to the installation dimensions, two sizes are available: Ø 24 mm (D6) with a flow rate of 20 l/min and Ø 26 mm (D8) with a flow rate of 33 l/min, at 3 bar in each case.

Flow rate setting: There are models with a single flow rate and 2-step models that offer two flow rates.

Push button fixation: Two optional connection interfaces to the faucet are available depending on the preferred design: snap fit and bolt fit (M6). Please refer to the datasheets for the relevant shapes and sizes.

Inflow and outflow direction: With FSG on/off controls, the upstream flow is radial and the downstream axial. This flow direction is reversed in the FSG inverse D6 models. This opens up additional options for installation design in tight spaces.

Operating temperature: The recommended operating temperature is between 1 °C / 33.8 °F and 70 °C / 158 °F; temperatures of 90 °C / 194 °F are possible for brief periods for thermal disinfection.

Operating pressure: The recommended operating pressure ranges between a minimum of 0.5 bar / 7 psi and a maximum of 10 bar / 145 psi.

Do you need help choosing? You will find the relevant contact information towards the bottom of the page.

name="media"

Product range for OEM/Industry

Product range for Retail/Distribution

Country

Inflow

Max. flow rate

Push button fixation

Flow rate setting

Bore diameter

Reset all

12 Results

All downloads and properties

FSG On/Off Control D6

Part No. : 184106000

Inflow: axial
Push button fixation: Snap

Max. flow rate: 20 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 24 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D6

Part No. : 184107000

Inflow: axial
Push button fixation: Snap

Max. flow rate: 20 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 24 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D6

Part No. : 184109000

Inflow: radial
Push button fixation: Snap

Max. flow rate: 20 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 24 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D6

Part No. : 184112000

Inflow: radial
Push button fixation: Bolt

Max. flow rate: 20 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 24 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D8

Part No. : 184151000

Inflow: radial
Push button fixation: Bolt

Max. flow rate: 33 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 26 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D8

Part No. : 184150000

Inflow: radial
Push button fixation: Snap

Max. flow rate: 33 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 26 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D6

Part No. : 184120000

Inflow: axial
Push button fixation: Bolt

Max. flow rate: 20 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 24 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D6

Part No. : 184121000

Inflow: axial
Push button fixation: Bolt

Max. flow rate: 20 l/min at 3 bar
Flow rate setting: fixed

Downloads and properties

Bore diameter: 24 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D8

Part No. : 184152000

Inflow: radial
Push button fixation: Snap

Max. flow rate: 33 l/min at 3 bar
Flow rate setting: 2 step

Downloads and properties

Bore diameter: 26 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

FSG On/Off Control D8

Part No. : 184153000

Inflow: radial
Push button fixation: Bolt

Max. flow rate: 33 l/min at 3 bar
Flow rate setting: 2 step

Downloads and properties

Bore diameter: 26 mm
Operating pressure: 0.5-10 bar / 7-145 psi
Max temperature: max 70° C / 158° F

Technical Product Information

Download certificate

Download drawing

› Download Specsheet

Show all

Reset all

0 Results

All further information

No matches were found.

For an improved search result, try changing your filter criteria or reset all filters.

For further questions you can contact us.

Get advice now

Please contact us for help finding the right on/off control. Neoperl offers you solutions that are completely tailored to your requirements. Our qualified staff will be happy to assist you with any questions you may have.
