HomeProductsFlow regulatorsFlow regulators for retrofitting at home

Flow regulators are real water savers. With flow regulators for retrofitting in existing products, you can reduce the water consumption of your shower by up to 40 %, for example – and saving on hot water also means saving on energy heating it.

Water-saving solutions and application areas

With flow regulators for retrofitting, you can quickly and easily convert your existing shower or garden installations into water and energy savers. › You'll find more information on saving water and energy here.

All of the water saving products listed below are equipped with unique NEOPERL flow regulator technology and are suitable for use in the following areas.

name="image"
PCW-01 Mengenregler für den Brauseschlauch

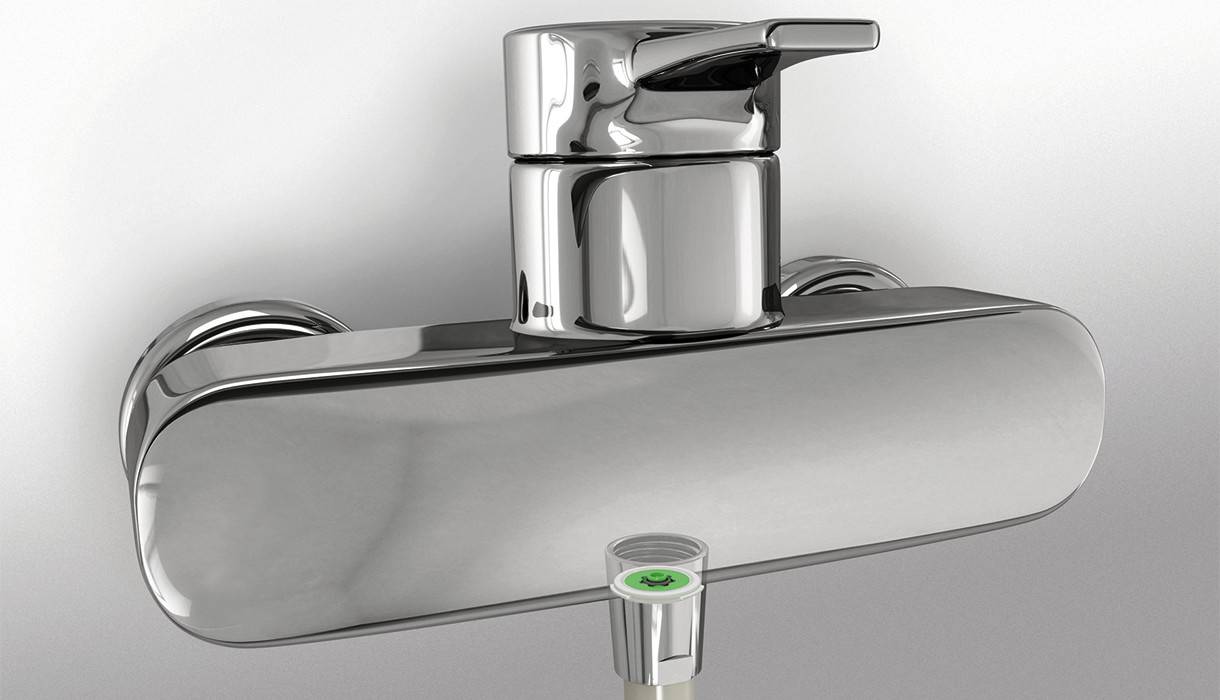

PCW-01: Water-saving flow regulator for shower hoses
Retrofit solution for shower hoses

The PCW-01 flow regulator, a ½" washer with integral flow regulator, replaces the usual washer in the shower hose. The PCW-01 thereby has two functions: sealing and flow regulating. This water saver is easy to install and fits in any ½" hose connection, making it the perfect retrofit solution for your existing shower or shattaf hose.

See the PCW-01 in action: Learn more in the › video.

name="image"
PCW-02 Mengenregler in der Duschbrause
PCW-02: water-saving flow regulator for shower handles
Retrofit solution for shower handles and wall spouts

The PCW-02 flow regulator, a ½" washer with integral flow regulator and flexible silicone turbine, is inserted into the handle of shower handles or into bib taps (e.g. garden faucets) and replaces the usual washer there. The flexible turbine facilitates use in different bore diameters and ensures secure positioning in any 1/2" connection with a male thread.

See the PCW-02 in action: › Learn more in the video.

name="image"
PCR Duschverschraubung

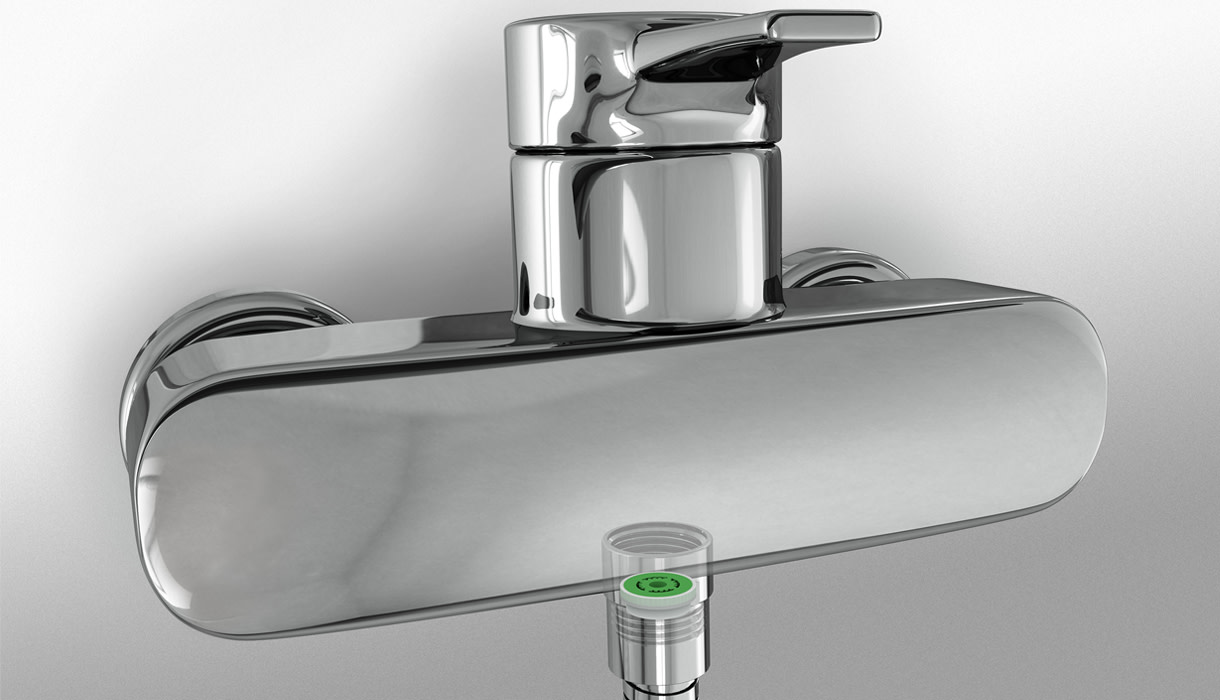

PCR shower connection: water-saving adapter for shower faucets
Retrofit solution for shower faucets

The PCR shower connection with integral flow regulator is simply screwed between the faucet and shower hose as a visible adapter. It fits to all current shower faucets with its ½" thread.

name="image"
Ecobooster Shower Wasserparer für die Dusche

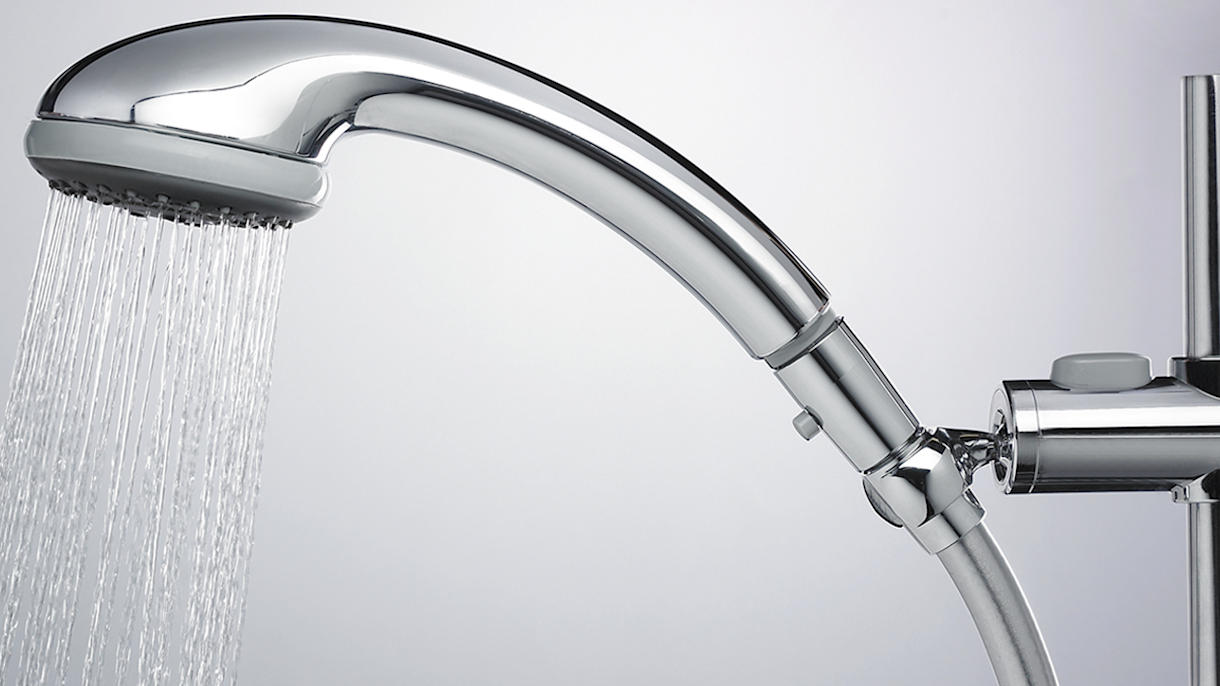

ECOBOOSTER Shower: water-saving dual mode regulator for shower handles
Retrofit solution for shower handles – with dual mode

The ECOBOOSTER Shower is a dual mode flow regulator that is screwed between the shower handle and hose. It is set to water saving mode in its default position, with a flow rate of approx. 5 liters per minute, and can be very simply switched at the press of a button to the full flow rate (max. 20 liters per minute) if needed, such as for washing hair. This means that you can always choose between an economical or a greater amount of water. When the faucet is closed, the ECOBOOSTER Shower automatically switches back to water-saving mode.

name="image"
Installation and function
Montage PCW-01
PCW-01 for shower hoses

The existing washer is removed and replaced with the PCW-01. Insert the flow regulator into the shower hose with the logo side up and screw it to the faucet.

Montage PCW-02 in Duschbrause
PCW-02 for shower handles

The existing washer is removed and replaced with the PCW-02. Insert the PCW-02 flow regulator into the hand shower with the turbine side facing against the flow and screw it to the hose thread.

PCW-02 in Wandausläufen
PCW-02 for wall spouts

The existing washer is removed and replaced with the PCW-02 flow regulator. Insert the PCW-02 into the wall screw connection with the turbine side facing against the flow and screw it to the thread in the wall.

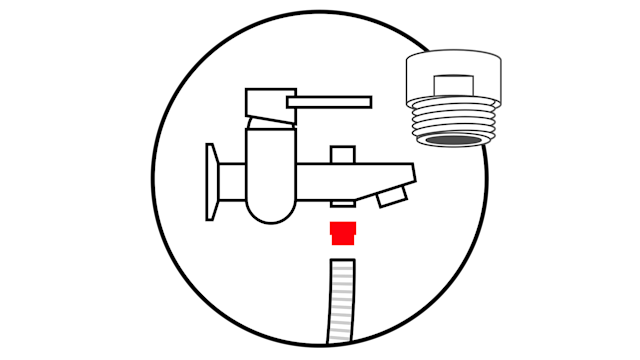

Montage PCR Duschverschraubung
PCR for shower faucets

Simply screw the PCR shower connection as an adapter between the faucet and shower hose. Do not remove the existing washer in the shower hose, but screw it to the new connection instead.

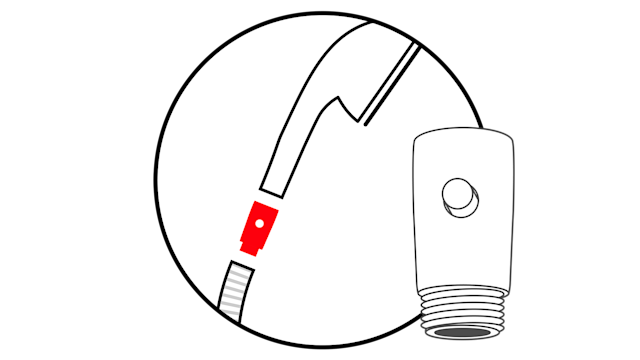

Ecobooster Shower Montageanleitung
ECOBOOSTER Shower for shower handles

Simply screw the ECOBOOSTER Shower as an adapter between the shower handle and hose. Do not remove the existing washer in the shower hose, but screw it to the new connection instead.

Selection criteria

Please note that not all flow regulators for retro-fitting are available in every country and for all customer areas. For more details, as well as information on worldwide approvals, please see the product listing. To refine your selection, please use the following points as filters.

Flow rate: PCW-01 and PCW-02 flow regulators are available in different color-coded flow rates. We usually recommend a flow rate of 8–12 liters per minute (2.1 to 3.2 gallons per minute) in showers, depending on the country and local conditions.Mounting bore: All PCW models are designed for G½" screw connections. The PCW-02 turbine enables secure installation in the shower handle or faucet. The PCW-02 for standard pressure ranges fits in holes of 11 to 16 mm (0.4 to 0.6 inches) in diameter and for low pressure ranges in holes of 13 to 16 mm (0.5 to 0.6 inches) in diameter.Application areas: The main function of all of the products mentioned is to conserve water. You can choose which form of installation you prefer – to the shower handle, hose, or faucet.Pressure range: Neoperl differentiates between standard pressure and low pressure flow regulators. All standard pressure regulators are designed for a pressure range of 1 – 10 bar (14.5 to 145 psi). Our low pressure models are designed for a pressure range of 0.25 – 4 bar (3.6 to 58 psi).Application temperature: Up to a maximum of 65 °C (149° F)

Do you need help choosing? You will find the relevant contact information at the bottom of the page.

name="image"
Product range for OEM/Industry
Product range for Retail
Reset all

43 Results

All downloads and properties
PCW-01
  • Part No. : 588632100
  • Flow rate: 2.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588633100
  • Flow rate: 3.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588634100
  • Flow rate: 4.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588635100
  • Flow rate: 5.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588636100
  • Flow rate: 6.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588637100
  • Flow rate: 7.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588638100
  • Flow rate: 8.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588639100
  • Flow rate: 9.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588640100
  • Flow rate: 10.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
PCW-01
  • Part No. : 588641100
  • Flow rate: 11.0 l/min
  • Bore diameter: G 1/2"
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information › Download certificate › Download drawing
Load more
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Watertap with PCA
Water-saving solutions for your washbasin

Faucets at your kitchen or bathroom washbasins can also be turned into water savers in moments. Opt for a water-saving Neoperl faucet aerator with flow regulator technology.

Learn more about saving water
Get advice now

Please contact us to get help finding the right flow regulator for retrofitting in your home. Our qualified staff will be pleased to support you.

name="image"
OEM / manufacturers
  • oem_inquiry@neoperl.com
Retail / distribution
  • retail_inquiry@neoperl.com
You might also be interested in
Our standard flow regulators are designed for the pressure range 1-10 bar.

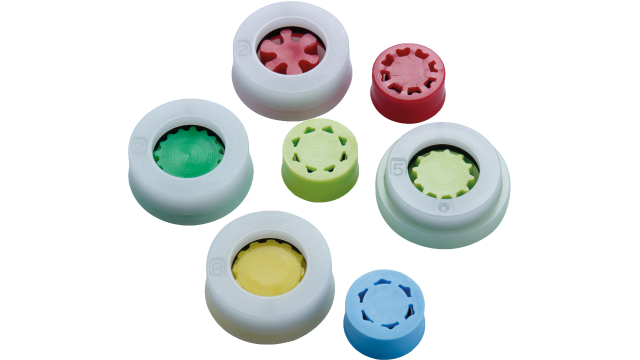

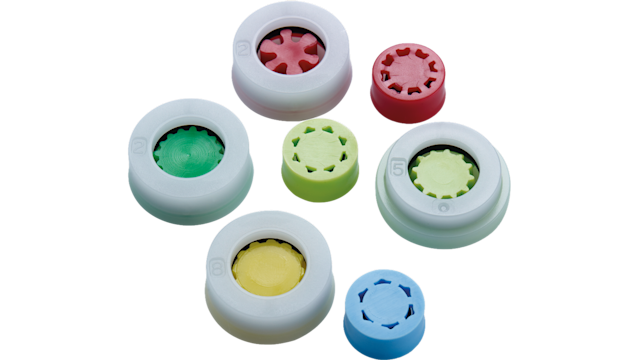

Flow regulators for technical applications
