SLIM
Freisteller SLIM Strahlbrecher

Application areas

basin tap

kitchen tap

Product range

OEM/Industry name="column1"
HomeProductsFaucet aeratorsAerators with integrated threadSlim

A distinguishing feature of the SLIM stream shaper with laminar stream is its extremely low installed height. As a result, it offers innovative design options for faucets without housing. It is especially suitable for flat-spouted faucets.

Armaturauslauf mit montiertem SLIM Strahlformer

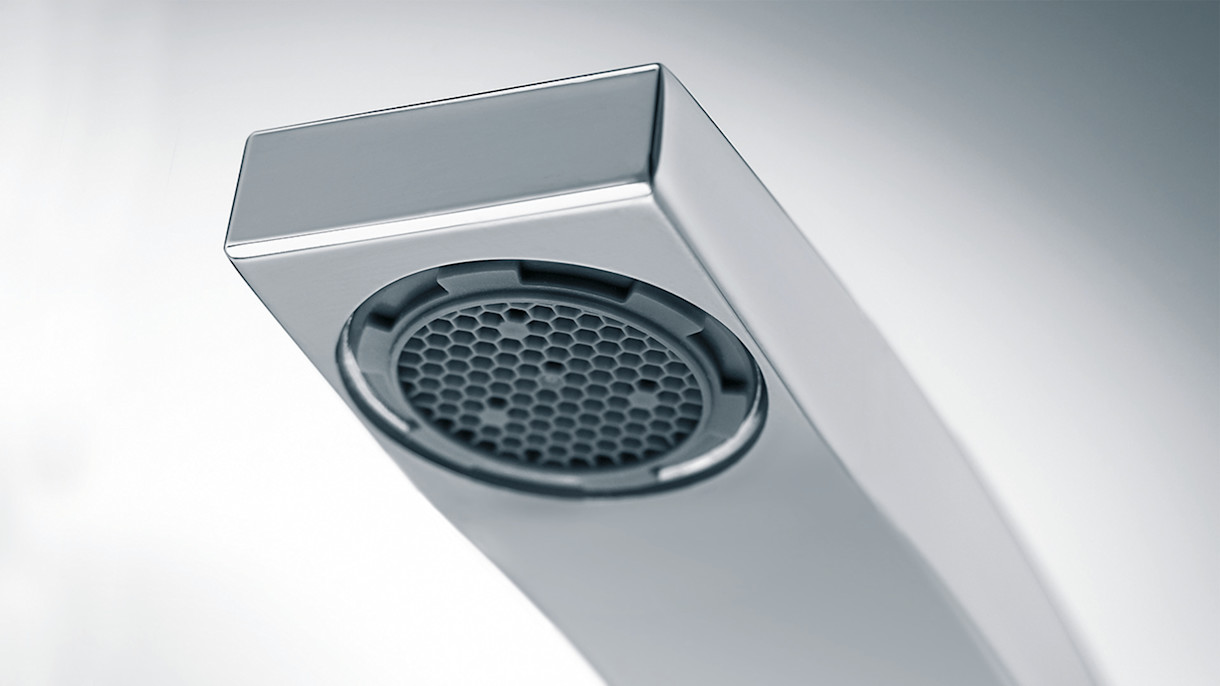

The SLIM stream shaper is elegantly hidden within the faucet
Selection criteria

Please note that SLIM stream shapers are only available for our OEM/industrial customers. For more details, as well as information on worldwide approvals, please see the product listing. To refine your selection, please use the following points as filters.

Flow rate: The SLIM stream shaper is available in various flow rate categories.Flow regulation: To save water, the SLIM stream shaper is also available with › PCA technology.Sizes: All SLIM stream shaper models are available in M24x1; the SLIM HONEYCOMB also in M18x1.Stream pattern: SLIM stream shapers produce a cystal-clear laminar stream.Adjustable stream angle (SSR): Many models come with the SSR function, which allows the tilting plate at the spout to be angled between ±6° and ±10°.Effective limescale protection (SLC): The SLIM is optionally available with an SLC function. You can easily rub off limescale deposits on the elastomer surface with your finger.Pressure range: Available for the normal pressure range, which is between 1 and 10 bar.Restrictions: Not suitable for non-pressurized water heaters.

Do you need help choosing? You will find the relevant contact information at the bottom of the page.

name="image"
Please note

To achieve a pleasant water stream, we recommend limiting the flow rate at the faucet (using a › flow regulator, for example). The flow regulator should not be installed too close to the SLIM stream shaper.

name="image"
Product range for OEM/Industry
Product range for Retail
Reset all

6 Results

All downloads and properties
Slim Cascade SLC SSR
  • Part No. : 408253010
  • Size: male M24x1
  • Flow rate: PCA 2.2 gpm max.
  • Stream type: Laminar
Downloads and properties
np_kreisPictosWeb_100x100px_190726 SLC
np_kreisPictosWeb_100x100px_190726 SSR
Technical Product Information › Download certificate › Download drawing
Slim Cascade SLC SSR
  • Part No. : 408256010
  • Size: male M24x1
  • Flow rate: PCA 1.5 gpm max.
  • Stream type: Laminar
Downloads and properties
np_kreisPictosWeb_100x100px_190726 SLC
np_kreisPictosWeb_100x100px_190726 SSR
Technical Product Information › Download certificate › Download drawing
Slim Honeycomb
  • Part No. : 015501000
  • Size: male M18x1
  • Flow rate: full flow
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Slim Honeycomb
  • Part No. : 015511000
  • Size: male M24x1
  • Flow rate: full flow
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Slim Honeycomb SSR
  • Part No. : 015512000
  • Size: male M24x1
  • Flow rate: full flow
  • Stream type: Laminar
Downloads and properties
np_kreisPictosWeb_100x100px_190726 SSR
Technical Product Information › Download certificate › Download drawing
Slim Cascade SLC SSR
  • Part No. : 015516000
  • Size: male M24x1
  • Flow rate: full flow
  • Stream type: Laminar
Downloads and properties
np_kreisPictosWeb_100x100px_190726 SSR
Technical Product Information › Download certificate › Download drawing
Load more
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Get advice now

Please contact us for help finding the right faucet aerator. Our qualified staff will be happy to assist you with any questions you may have.
