Dual Flow

Application areas

basin tap

kitchen tap

Product range

OEM/Industry name="column1"
HomeProductsFaucet aeratorsDual mode aeratorsDual Flow

Save water like never before! DUAL FLOW faucet aerators have a flow rate of just 0.2 liters per minute. This means that they are much more economical than ordinary faucet aerators. If necessary, switch to the spray stream with its higher flow rate.

Water-saving Dual Flow aerators offer an atomized and a spray stream

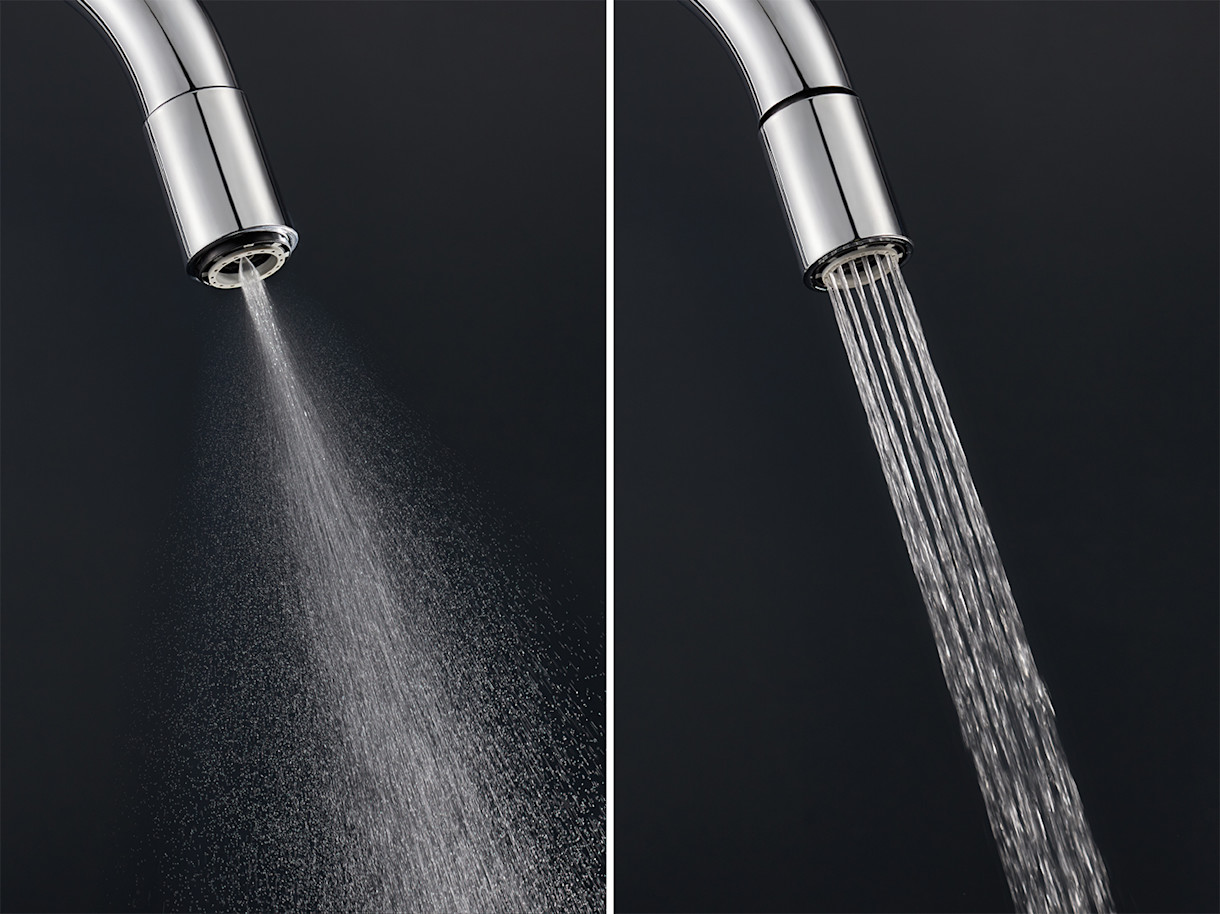

On the left you see the atomizer stream and on the right the spray stream
Quality features

The secret lies in atomizing the water stream. An ultra-fine spray mist is produced, which is sufficient for most activities, for example hand washing. If you need more water, switch to the spray stream with its higher – but still water-saving – flow rate.

When you turn off the faucet, the DUAL FLOW aerator automatically returns to the initial, economical mode. This way you can be sure that you will continue to save water next time.

› See the DUAL FLOW faucet aerators in action in this video.

name="image"
Selection criteria

Please note that DUAL FLOW faucet aerators are not available in every country and only for OEM / manufacturing customers. For more details, as well as information on worldwide approvals, please see the article listing. To refine your selection, please use the following points as filters.

Models: You can switch from atomizer to spray stream either by simply sliding ("Slide" model), clicking ("Click") or pushing a button ("Push").Flow rate: All three models offer the atomizer stream mode with 0.2 l/min flow rate as well as the spray stream with max. 1.2 gpm (approx. 4.5 l/min).Size: They are available in M22x1 (STD) or G1/2".Pressure range: The atomization function requires a supply pressure of >1 bar.Restriction: These models must not be used in faucets connected to non-pressurized water heaters.

Do you need help choosing? You will find the relevant contact information at the bottom of the page.

name="image"
NotesWe recommend installing › check valves at the hot and cold water inlet to prevent cross-over flow.Regular use of the faucet prevents stagnation in the pipe and ensures good water quality.

name="image"
Product range for OEM/Industry
Product range for Retail
Reset all

3 Results

All downloads and properties
Dual Flow Slide
  • Part No. : 074531000
  • insert with housing
  • Size: female M22x1
  • Flow rate: Atomizer stream 0.05 gpm and spray stream 1.2 gpm max.
  • Stream type: Kombi Fog spray/Spray
Downloads and properties
Technical Product Information
Dual Flow Click
  • Part No. : 074532000
  • insert with housing
  • Size: male 1/2"
  • Flow rate: Atomizer stream 0.05 gpm and spray stream 1.2 gpm max.
  • Stream type: Kombi Fog spray/Spray
Downloads and properties
Technical Product Information
Dual Flow Push
  • Part No. : 074530000
  • insert with housing
  • Size: male 1/2"
  • Flow rate: Atomizer stream 0.05 gpm and spray stream 1.2 gpm max.
  • Stream type: Kombi Fog spray/Spray
Downloads and properties
Technical Product Information
Load more
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Get advice now

Please contact us for help finding the right faucet aerator. Our qualified staff will be happy to assist you with any questions you may have.

name="image"
OEM / manufacturers
  • oem_inquiry@neoperl.com
You might also be interested in
Product Image Ecobooster
ECOBOOSTER

With the ECOBOOSTER faucet aerator, you can switch between economical water consumption and a higher flow rate at the press of a button.

Discover our range
Atomizer with integrated thread

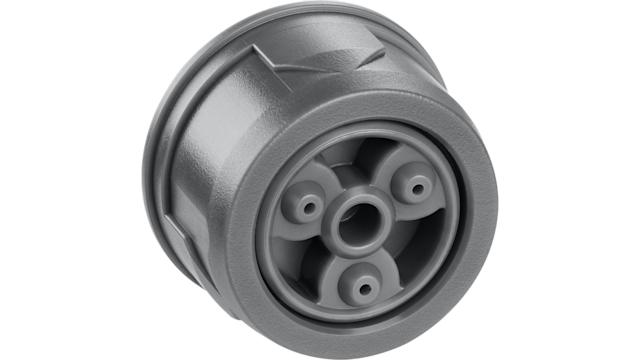

ATOMIZER
