Injector AD backflow preventer protect potable water from pollution by bacteria, microbes and viruses. All three models meet the strict criteria of DIN EN 1717 category 5. In contrast to other category 5 protection methods, all Injector AD models do not require electricity, a pump or water tank.

DIN EN 1717 specifies requirements for the protection against pollution of potable water in water installations and for protection devices to prevent potable water pollution by backflow. Category 5 applies to all fluids that may pose a human health hazard due to microbial or viral pathogens and do require protection by air gaps.

name="media"
Quality features

Its sophisticated nozzle technology (see "How does the protection device work?") enables Injector ADs to bridge an air gap with a precisely defined water jet, which corresponds to a type AD protection device according to DIN EN 1717.

Here you can see the benefits of the Injector AD compared to other category 5 protectiondevices at a glance:

Design: very low space requirements due to compact design Efficiency: no power supply, water tank and pump is requiredFlow rate: 1 l/min or 2 l/min Anti-lime protection: models with a flexible nozzle for enhanced lime protection are availableMounting support: the Injector AD 1.5 is available with housing (either with hose nipple or 3/8" thread)

In addition to DIN EN 1717, these Injector AD models are also cUPC(IAPMO) certified acc. to ASME A112.1.3 Air gap fittings to match backflowprotection of shower toilets (ASME A112.4.2)

name="media"
Typical application: shower toilet

The Injector AD is ideally suited for space-saving protection of the water supply line in modern shower toilets. Further applications in hygienically demanding environments are possible, such as in medical facilities or biological laboratories.

name="content"
Variants
Cartridge Injector AD 1.5

Robust cartridge with enhanced lime protection. Optional: housing as mounting support (available with hose nipple or 3/8" thread).

Flow rate: 2 l/min

Injector AD compact

Inline cartridge with hose connections. Optionally available with anti-liming protection for the nozzle. Separate flow regulation upstream and assembly cage fixation required.

Flow rate: 2 l/min

Injector AD basic

Inline cartridge with hose connections. Separate flow regulation upstream and assembly cage fixation required.

Available flow rates: 1 l/min and 2 l/min

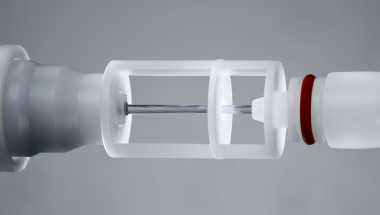

No backflow of polluted water thanks to air gap
How does the protection device work?

The Injector AD has an air gap built into it, which is bridged on the inlet side with the aid of a precise water jet. The sophisticated nozzle technology is used here in the smallest of spaces. A backflow of potentially polluted water is not possible: the gap is an insurmountable hurdle for the processed water.

name="media"
Availability and contact

Please note that the Injector AD is not sold in every country and is only available for our OEM/industrial customers. For more details, as well as information on worldwide approvals, please see the product listing.

To find the right product in a hygienically demanding environment, please contact us. Our qualified staff will be happy to assist you with any questions you may have. You will find the relevant contact information at the bottom of the page.

name="media"
Product range for OEM/Industry
Product range for Retail/Distribution
Reset all

7 Results

All downloads and properties
Injector AD 1.5 cartridge with housing
  • Part No. : 317600000
  • Flow rate: 2.0 l/min
Downloads and properties
  • Max temperature: permanently 55°/ short term 90°
Technical Product Information Download certificate Download drawing ›  Download Specsheet
Injector AD 1.5 cartridge
  • Part No. : 317700000
  • Flow rate: 2.0 l/min
Downloads and properties
  • Max temperature: permanently 55°/ short term 90°
Technical Product Information Download drawing ›  Download Specsheet
Injector AD 1.5 cartridge with housing 3/8"
  • Part No. : 317601000
  • Flow rate: 2.0 l/min
Downloads and properties
  • Max temperature: permanently 55°/ short term 90°
Technical Product Information Download drawing ›  Download Specsheet
Injector AD Compact with silicone nozzle (Lime Protection)
  • Part No. : 317510000
  • Flow rate: 2.0 l/min
Downloads and properties
  • Max temperature: permanently 55°/ short term 90°
Technical Product Information ›  Download Specsheet
Injector AD Compact
  • Part No. : 317500000
  • Flow rate: 2.0 l/min
Downloads and properties
  • Max temperature: permanently 55°/ short term 90°
Technical Product Information ›  Download Specsheet
Injector AD Basic
  • Part No. : 317801000
  • Flow rate: 1.0 l/min
Downloads and properties
  • Max temperature: permanently 55°/ short term 90°
Technical Product Information Download drawing
Injector AD Basic
  • Part No. : 317802000
  • Flow rate: 2.0 l/min
Downloads and properties
  • Max temperature: permanently 55°/ short term 90°
Technical Product Information Download drawing
