Flow regulators for technical applications
Our standard flow regulators are designed for the pressure range 1-10 bar.

Application areas

technical applications

heating

Product range

 OEM/IndustryRetail/distribution name="column1"
HomeProductsFlow regulatorsFlow regulators for technical applications

Flow regulators are installed as components in drinking water supply lines in several application areas, such as boilers, industrial setups, dosing and filling systems, and drinks machines. There they function out of sight, ensuring an appropriate water flow. NEOPERL flow regulators are available in various models and sizes, with different flow rates and pressures.
Quality features

Our flow regulators owe their high quality to the continuous process of adjustment that takes place during technically highly sophisticated manufacturing.

The interplay of the precision o-ring and seating area is perfectly matched to the pressure ratios of the water flowing through. This ensures a constant flow rate within the specified tolerance.The manufacture of flow regulators requires a continuous process of adjustment for every batch produced.Our flow regulator expertise also allows us to adjust the performance to customers' specific applications and expectations.The materials used in NEOPERL flow regulators meet all relevant international drinking water certification requirements.

 name="media"
Selection criteria

Please note that not all models of our flow regulators for technical applications are available in every country and for all customer areas. For more details, as well as information on worldwide approvals, please see the product listing. To refine your selection, please use the following points as filters.

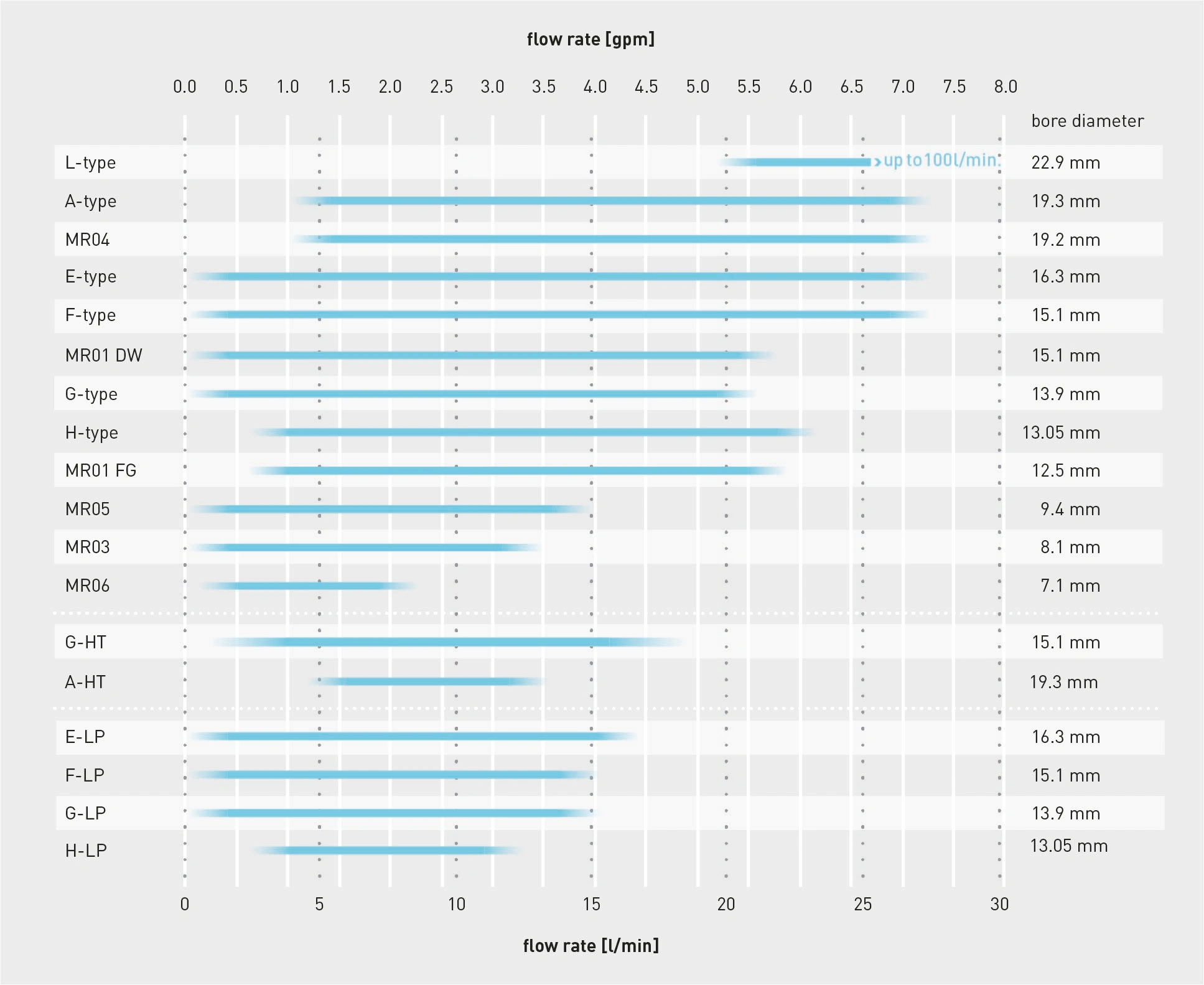

Flow rate: Each NEOPERL flow regulator covers a particular flow rate range.Bore diameter: The size and shape of the mounting bore is a key piece of information that ensures that the flow regulator is the perfect fit for the supply line.Pressure range: Neoperl differentiates between flow regulators for standard and for low pressure. Generally speaking, our standard pressure regulators are designed for a pressure range of 1 – 10 bar (14.5 to 145 psi) and our low pressure models for a range of 0.2 – 4 bar (2.9 to 58 psi).Application temperature: Depending on the model, NEOPERL flow regulators are designed for 20 °C or 38 °C (68 or 100.4 °F). Continuous operation is even possible to 65 °C (149 °F) with restrictions. You will find the model you need for your application in the product listing. We have special models for hot water applications.

Do you need help choosing? You will find the relevant contact information at the bottom of the page.

 name="media"
Product range for OEM/Industry
Product range for Retail/Distribution
Icons/crossCreated with Sketch.
Reset all

313 Results

All downloads and properties
G-LP PN
  • Part No. : 589142100
  • Flow rate: 0.25 l/min
  • Bore diameter: special thread
  • Pressure range: 0.2 - 6 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing
G-LP PN
  • Part No. : 589143100
  • Flow rate: 0.5 l/min
  • Bore diameter: special thread
  • Pressure range: 0.2 - 6 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing
G-LP PN
  • Part No. : 589144100
  • Flow rate: 1.0 l/min
  • Bore diameter: special thread
  • Pressure range: 0.2 - 6 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing
G-LP PN
  • Part No. : 589145100
  • Flow rate: 2.5 l/min
  • Bore diameter: special thread
  • Pressure range: 0.2 - 6 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing
LH
  • Part No. : 586670100
  • Flow rate: 70.0 l/min
  • Bore diameter: 22.9 mm
  • Pressure range: 3 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing
LH
  • Part No. : 586668100
  • Flow rate: 90.0 l/min
  • Bore diameter: 22.9 mm
  • Pressure range: 3 - 10 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing
LH
  • Part No. : 586666100
  • Flow rate: 100.0 l/min
  • Bore diameter: 22.9 mm
  • Pressure range: 2 - 8 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing
LH
  • Part No. : 586665100
  • Flow rate: 110.0 l/min
  • Bore diameter: 22.9 mm
  • Pressure range: 1 - 5 bar
Downloads and properties
  • Temperature range: 65°C / 150°F
Technical Product Information Download drawing

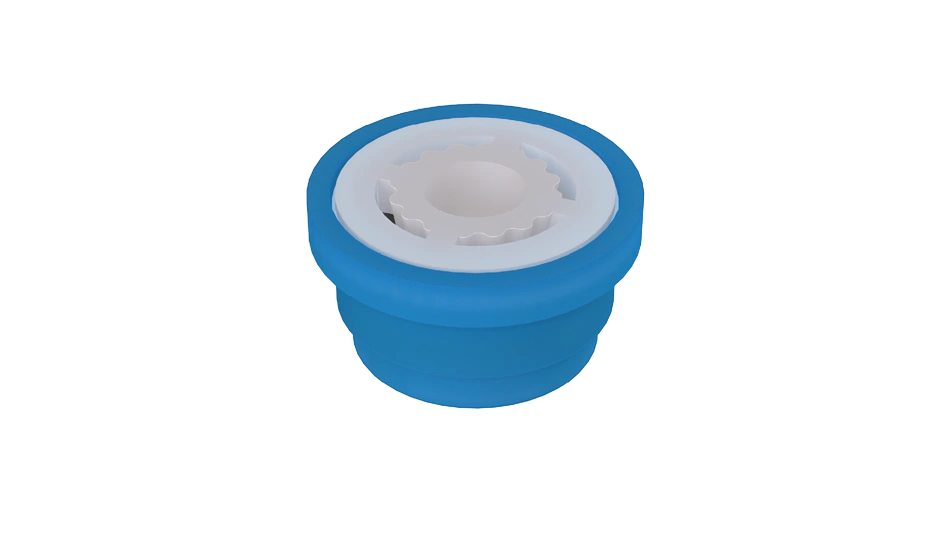

A-HT
  • Part No. : 587327100
  • Flow rate: 7.5 l/min
  • Bore diameter: 19.3 mm
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: hot: 80°C
Technical Product Information Download drawing
A-HT
  • Part No. : 587326100
  • Flow rate: 6.0 l/min
  • Bore diameter: 19.3 mm
  • Pressure range: 1 - 10 bar
Downloads and properties
  • Temperature range: hot: 80°C
Technical Product Information Download drawing
Show all
Icons/crossCreated with Sketch.
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Get advice now

Please contact us for help finding the right flow regulator. Our qualified staff will be happy to assist you with any questions you may have.
