NEOSTRAHL AND FS DRIPLESS

Application areas

kitchen tap

basin tap

tub filler

Product range

OEM/IndustryRetail/distribution name="column1"
HomeProductsFaucet aeratorsAerators with housingNeostrahl

There are two typical application cases for these models: regions with low supply pressure and low pressure faucets for which conventional faucet aerators are unsuitable. Thanks to the low resistance, NEOSTRAHL stream shapers ensure a sufficient flow rate.

Models
NEOSTRAHL Stream Shaper

This classic stream shaper is suitable for faucets connected to non-pressurized water heaters with a pressure relief valve.

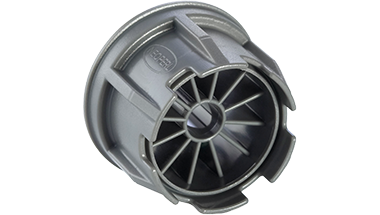

NEOSTRAHL LP Stream Shaper

Thanks to the norm-conforming crown's shape the stream shaper cannot be pressed shut, preventing overpressure in the tank. For faucets connected to non-pressurized water heaters without pressure relief valve.

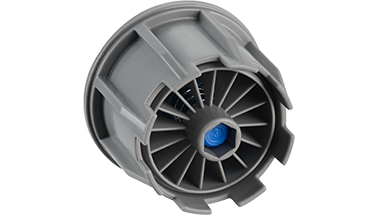

FS Dripless stream shaper for low-pressure faucets
FS Dripless Stream Shaper

This stream shaper offers run dry protection and ensures pressure relief when heating the tank. Suitable for faucets connected to non-pressurized water heaters without a pressure relief valve.

Selection criteria

Please note that not all models of the NEOSTRAHL stream shaper are available in every country and for all customer areas. For more details, as well as information on worldwide approvals, please see the product listing. To refine your selection, please use the following points as filters.

Stream pattern: The stream shapers produce a crystal-clear laminar stream.Sizes: Available in different sizes, depending on the model.Pressure range: Suitable for low and normal pressure ranges.

If you need help choosing, you'll find contact details at the bottom of this page.

name="image"
Product range for OEM/Industry
Product range for Retail
Reset all

20 Results

All downloads and properties
Neostrahl
  • Part No. : 014053000
  • insert with housing
  • Size: female M22x1
  • Flow rate: for non-pressurized heating systems with pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl LP
  • Part No. : 014063000
  • insert with housing
  • Size: female M22x1
  • Flow rate: for non-pressurized heating systems without pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl
  • Part No. : 014153000
  • insert with housing
  • Size: male M24x1
  • Flow rate: for non-pressurized heating systems with pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl LP
  • Part No. : 014163000
  • insert with housing
  • Size: male M24x1
  • Flow rate: for non-pressurized heating systems without pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl
  • Part No. : 014253000
  • insert with housing
  • Size: male M28x1
  • Flow rate: for non-pressurized heating systems with pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate
Neostrahl LP
  • Part No. : 014263000
  • insert with housing
  • Size: male M28x1
  • Flow rate: for non-pressurized heating systems without pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl LP
  • Part No. : 015615000
  • insert with housing
  • Size: female 3/8"
  • Flow rate: for non-pressurized heating systems without pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl LP
  • Part No. : 015635000
  • insert with housing
  • Size: female M16x1
  • Flow rate: for non-pressurized heating systems without pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl LP
  • Part No. : 015655000
  • insert with housing
  • Size: male M18x1
  • Flow rate: for non-pressurized heating systems without pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate › Download drawing
Neostrahl LP
  • Part No. : 024050000
  • insert only
  • Size: STD/REG insert
  • Flow rate: for non-pressurized heating systems without pressure relief valve
  • Stream type: Laminar
Downloads and properties
Technical Product Information › Download certificate
Show all
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Get advice now

Please contact us for help finding the right faucet aerator. Our qualified staff will be happy to assist you with any questions you may have.
