HomeProductsDivertersManually operated diverters

Manually operated diverters are switchable components in faucets that are used to redirect the supply of water according to use, e.g., from a tub filler inlet to a hand shower. They are integrated in faucets with different designs.

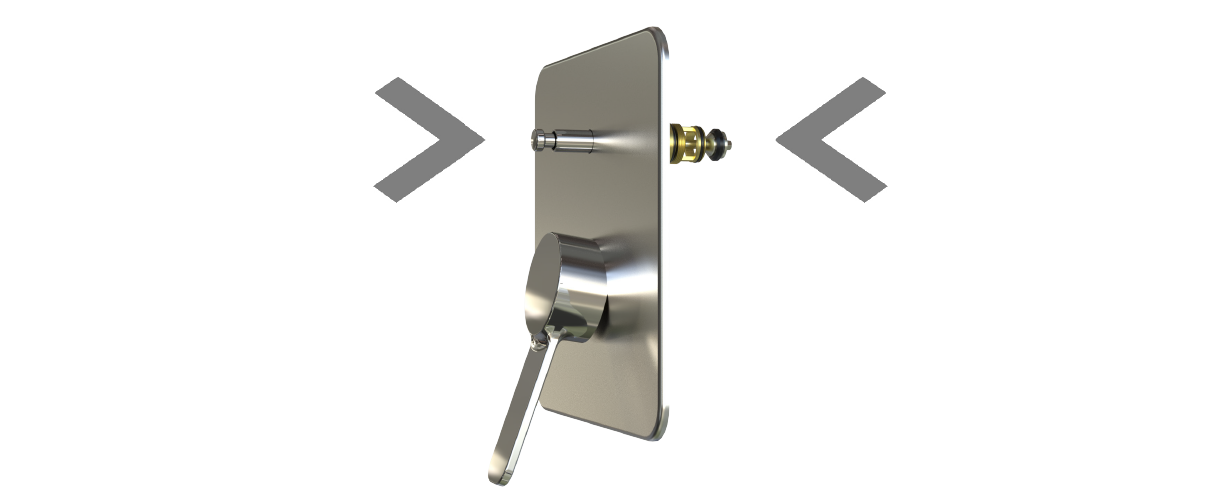

For concealed faucets

These diverters are a component of concealed faucets and completely invisible. Operation: pushing a faucet knob. Model range: the classic CDV diverter line and a new cartridge solution: Easy Push Diverter.

name="media"

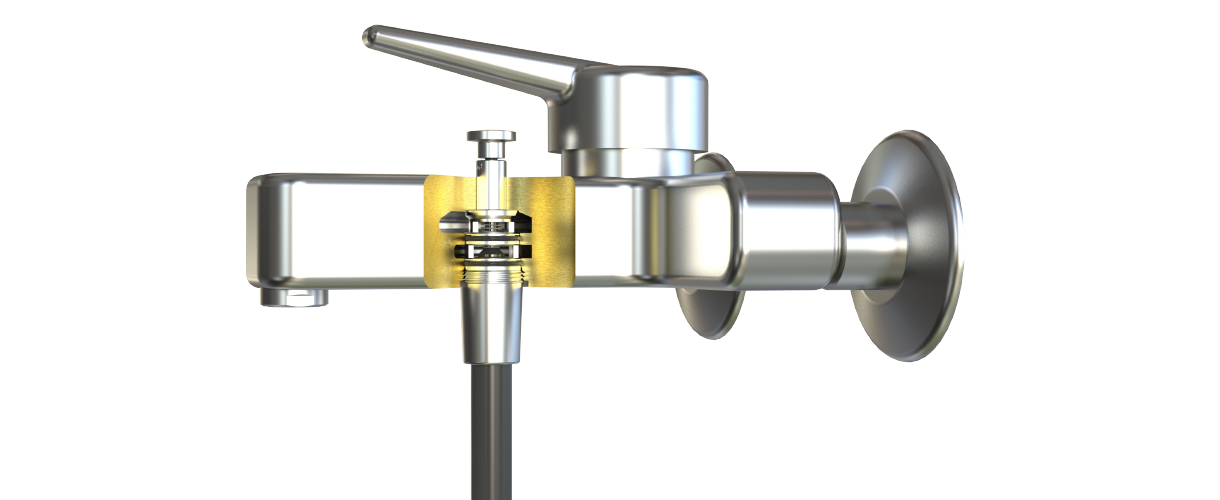

For Exposed Faucets

These diverters are (partly) a visible component of the faucet. Operation: either by pulling or pushing the diverter knob. With 1/2" hose connection.

name="media"
Diverter solutions

Neoperl offers (partly) exposed and completely concealed diverter models. They are a component in concealed faucets in most cases. New is the Easy Push Diverter - a robust cartridge made of plastic and therefore nickel free.

name="media"

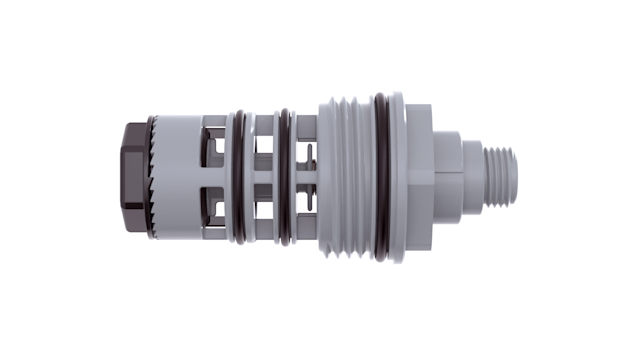

Easy Push Diverter switching function: push

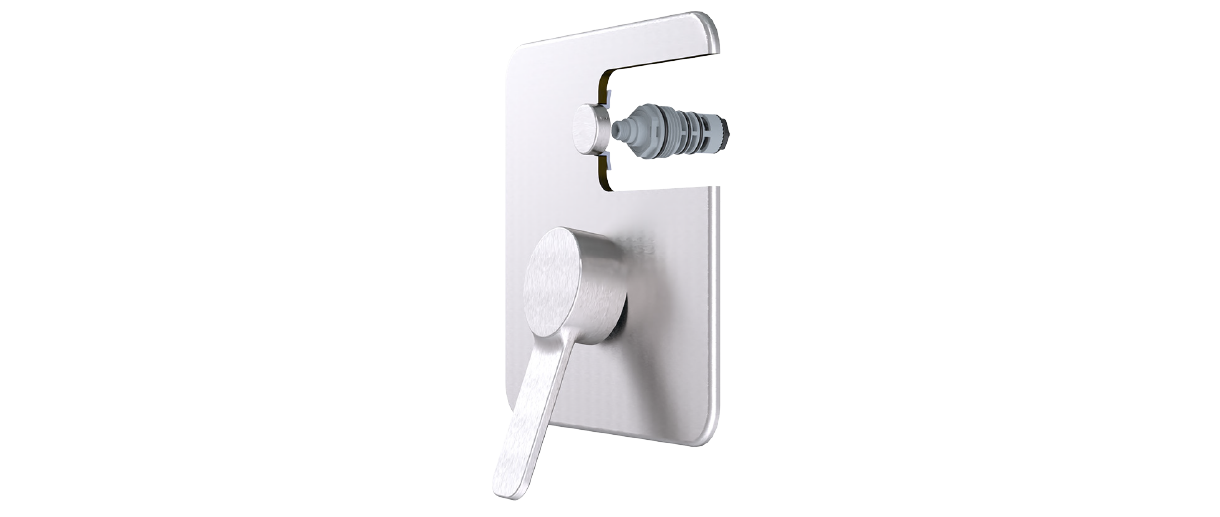

New: Easy Push Diverter

Completely concealed behind the wall or incorporated in the faucet. By pushing the faucet knob the cartridge works smoothly irrespective of the supply pressure.

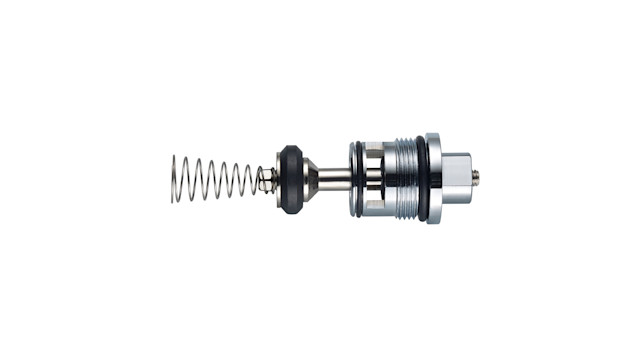

CDV 18 Switching function pull or push
Diverter CDV 18

Completely concealed behind the wall or incorporated in the faucet. Operation: manually by pulling or pushing a faucet knob which is fitted to the bolted joint.

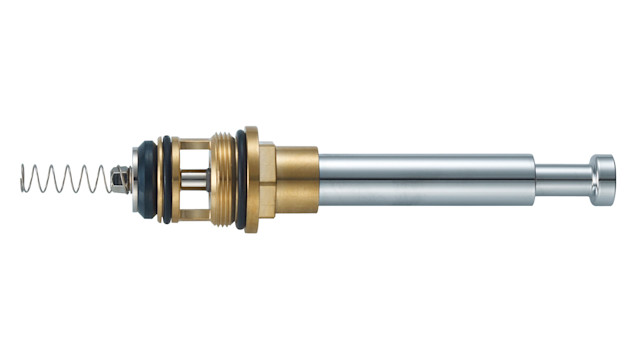

CDV 22: Switching funktion push
Diverter CDV 22

Most of the diverter is concealed behind the wall. Operation: manually by pushing the diverter knob.

Easy Push Diverter: a variety of possiblities
Potential applications

Diverters mady by Neoperl offer various options for shower and bath.

name="media"

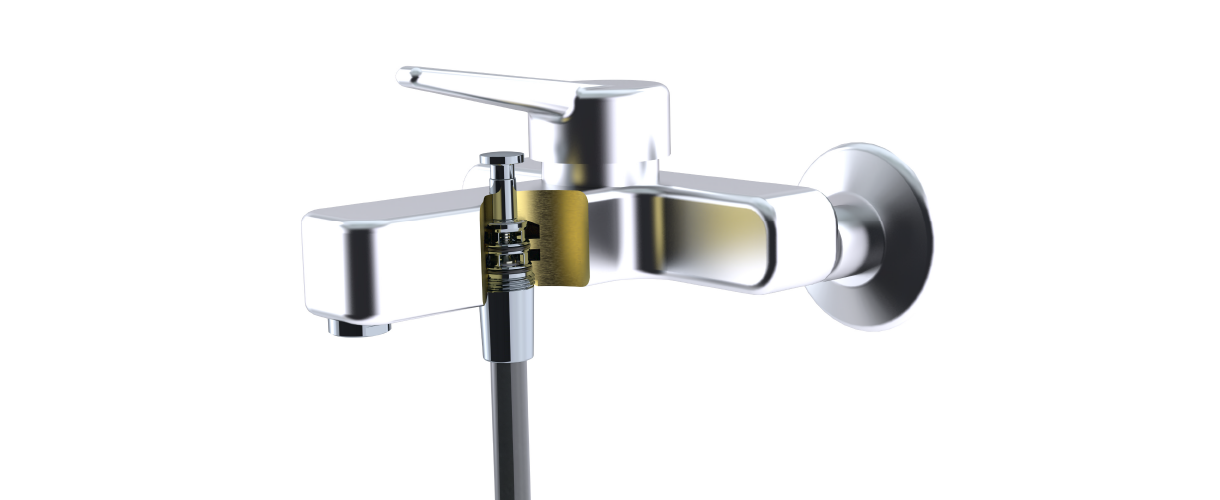

Models with 1/2" hose connection

These faucet diverters have a 1/2" hose connection and are a component of exposed faucets in most cases. They come in different materials and combinations thereof to suit any requirement and demand:

name="media"

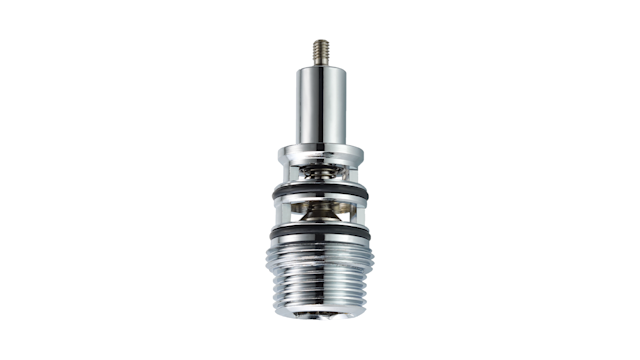

Brass diverters

All components – except the spring made of stainless steel – are fully made of brass.

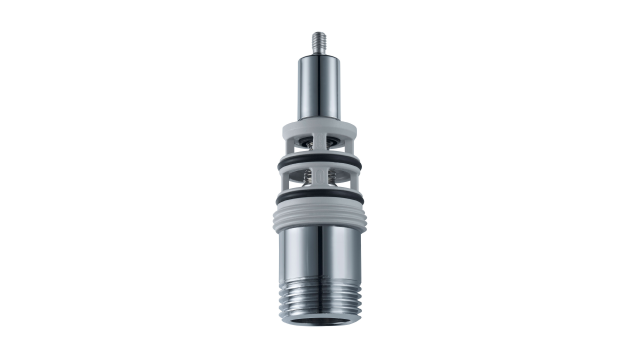

Hybrid diverter
Hybrid diverters

The connector and axle are made of brass, the housing of plastic.

Plastic Diverter
Plastic diverters

Housing and connector are made of plastic, the axle of either plastic or brass.

A particular feature of these diverters is that they automatically switch back to the standard position when the pressure falls below approx. 0.2 bar. Neoperl also offers diverters with a locking mechanism for low pressure conditions where this function is undesirable. This prevents the diverter switching from back when the pressure in the water pipe decreases. The diverter remains locked in the desired position and the hand shower is supplied with sufficient water even at low pressure.

Moreover, there is the option of integrating a check valve in some diverters to ensure backflow prevention requirements.

name="media"
Selection criteria

Please note that diverters are only available for our OEM/industrial customers. For more details, as well as information on worldwide approvals, please see the product listing. To refine your selection, please use the following points as filters.

Material: Diverters come in brass or plastic or in a hybrid version combining both materials.Operation: Push or pull.Lockable: Lockable for low pressure conditions. These models do not switch back automatically to the standard position when the pressure falls below approx. 0.2 bar. Use check box for selection. Check valve option: A › check valve can be integrated in some models. Use check box for selection.

Do you need help choosing? You will find the relevant contact information at the bottom of the page.

name="media"
Product range for OEM/Industry
Product range for Retail/Distribution
Reset all

19 Results

All downloads and properties
Diverter DVA short
  • Part No. : 180020000
  • Material: Brass
  • Operation: Pull
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter DVLA long option: check valve
  • Part No. : 180032000
  • Material: Brass
  • Operation: Pull
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter DVA-CV short Option: check valve
  • Part No. : 180042000
  • Material: Brass
  • Operation: Pull
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter CDV 18
  • Part No. : 182000000
  • Material: Brass
  • Operation: Pull
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter CDV22-I
  • Part No. : 182001000
  • Material: Brass
  • Operation: Push
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter CDV18-I
  • Part No. : 182002000
  • Material: Brass
  • Operation: Push
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter CDV22-I2
  • Part No. : 182003000
  • Material: Brass
  • Operation: Push
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter DV short Option: lockable
  • Part No. : 180010000
  • Material: Brass
  • Operation: Pull
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Diverter DVL long Options: check valve lockable
  • Part No. : 180030000
  • Material: Brass
  • Operation: Pull
Downloads and properties
  • Installation note:
Technical Product Information Download certificate Download drawing
Easy Push Diverter auto-return
  • Part No. : 184500000
  • Material: Plastic
  • Operation: Push
Downloads and properties
  • Installation note:
Technical Product Information Download drawing ›  Download Specsheet
Show all
Reset all

0 Results

All further information
No matches were found.For an improved search result, try changing your filter criteria or reset all filters. For further questions you can contact us.
Get advice now

Please contact us for help finding the right diverter. Our qualified staff will be happy to assist you with any questions you may have.

name="media"
